Channel Balance ID

A handy person from St. Petersburg, Florida says:
I believe that I have a Series 351 with a 15-002 Shoe and a 19-002 Top. Please see photos to verify. It is hard to see the difference between the 15-002 and the 15-001 Shoes in your photos. The Top & Shoe are almost the same color with the Shoe being slightly more yellow. The only marking is "2930" stamped into the metal channel near the bottom. The metal channel is 30" long and 1/2" wide.

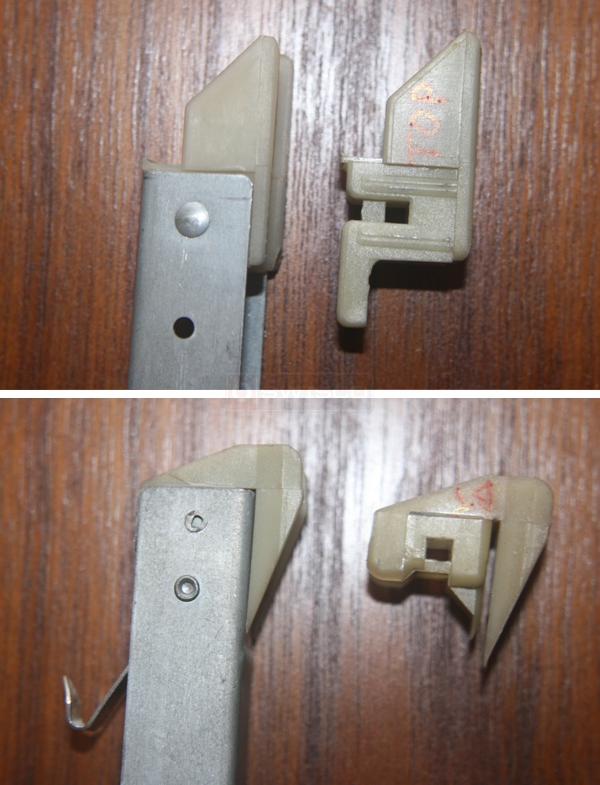

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting! The only difference between the 15-001 and 15-002 is the depth. For Take a look at the image below to see what I mean.
Alternate view of 15-002

Which is closer to your shoe?
A handy person from St. Petersburg, FL says:
Thanks Paul. My calipers measure the depth at 0.975". The edge shows signs of wear so I am confident that it is a 15-002 shoe as I suspected (definitely not a 15-001). I will be ordering a 30" Series 351 with the 19-002 top and 15-002 shoe.
Profile picture of Paul
Paul from SWISCO responded:
Great! I agree, yours is probably just worn down. Happens all the time. Let me know if you have any other questions.
