Channel Balance RE: #2930 j

A home owner from Florida says:
Hi Tom-

My dad, Jerry Nappi, asked me to send you some pictures of the part he needs. The images are attached. Please let me and my dad know if you need anything else. I can send you more pictures because this site only allows me to attach 5.

Thanks,

Stephanie

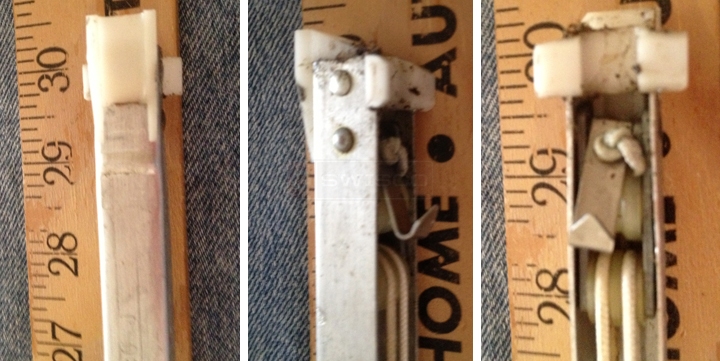

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Hey, Stephanie, thanks for posting. It looks like this bottom shoe is our 15-005, but I still need to know what the top attachment is. Take a look at our 19-002 and 19-005. Which one of these look closest?
A handy person from Florida says:
I think it might be the 19-005, but I'm not quite sure. I'm just going from the pictures my dad sent to me, as I am not physically in front of the part. It is hard to tell because the specific piece you are asking about is broken and the side tab in 19-005 might be broken off.

I'm not sure if this helps, but he said the middle part is #2930. Let me know if you would like more pictures.

Thanks,
Stephanie
Profile picture of Paul
Paul from SWISCO responded:
Thanks for getting back to us, Stephanie. It's really hard to say what your top attachment is if yours is missing. The only difference between our 19-002 and 19-005 is that the 19-005 has wings while our 19-002 does not. If I had to guess, I'd say that since your bottom shoe has wings, the top attachment on your balance is our 19-005. However, that is still just a guess.

If your dad can check the other balance found in the window and see if it still has its top attachment, all it would take is a glance to see if it has wings or not. That way we can know for sure. If it does, then I think you'll be looking at our S380-30 with a 2930 option.
A handy person from Florida says:
Does this picture help at all?

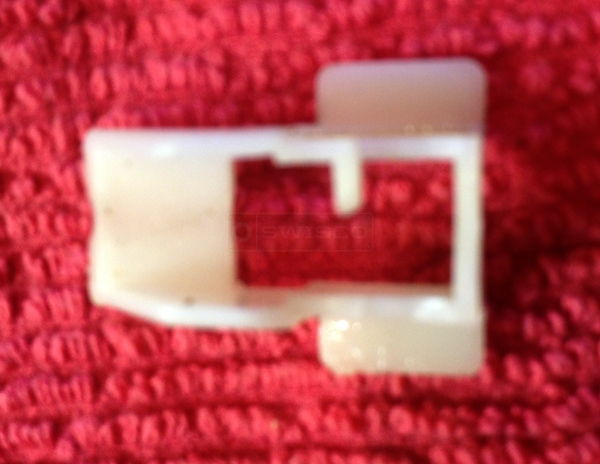

User submitted photos of a balance top.
Profile picture of Paul
Paul from SWISCO responded:
Great! Looks like the 19-005, since it has wings. I recommend you take a look at our S380-30 balance with a 2930 option. Does that look good to you? You may also be interested in our handy tutorial video which shows the proper replacement method.
