Channel balance UB 28C

A quick learner from Clermont, Fl says:
The existing balance is stamped UB 28C and is 1/2" channel that is 29" long
It is not the original since the contractor installed " heavy duty" balances when the large window was very difficult to operate ( the overall upper an lower opening is 51" W x 72" H.

Which of your kits would be best to purchase for this window?
Thanks
John C.

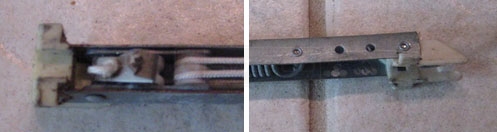

User submitted photos of their UB 28C channel balance attachments.
Profile picture of Mike
Mike from SWISCO responded:
Hi John, did your window operate well with these "heavy duty" balances? How long did they last?

Can you submit a couple more photos of each balance en? It is not very clear from the one angle you provided as to which replacement series you will need.
A quick learner from Clermont Florida says:
The window was always difficult to operate, both raising and lowering. They told us to spray silicone along the sides once in a while when we purchased the house in 2004
I am attaching a couple more photos, hopefully they will show you what you need to see.
Thanks
John C
Profile picture of Mike
Mike from SWISCO responded:
John, it appears you have the S380-29 Channel Balance (stamp 2830), however we would like you to weigh the window sash so we can confirm the correct stamp.

Please remove the sash and place it on a bathroom scale and give us the weight in lbs.
A quick learner from Clermont Florida says:
Thank you
The sash weighs 20Lbs
John
Profile picture of Mike
Mike from SWISCO responded:
John, the S380-29 Channel Balance with stamp option 2830 is good for a 20 lb. sash.
A quick learner from Clermont Florida says:
Thank you for all of your help. I'l order the parts and we ought to be good to go!
Thanks
John
A home owner from Naples,Florida says:
Hey Mike,

See the picture on the left in the Clermont,Florida
question above? Do you sell those block and tackle
pulleys separately? I need 11 of the double roller
and 2 of the single roller kind to fix my 28D and 28C balances. If so, how much do they cost?

Thanks,

Tom
Profile picture of Mike
Mike from SWISCO responded:
Tom, we have many channel balances available. You can get started here.

The channel balance above has been identified as the S380-29 Channel Balance.
