Channel balance, cannot match ends

A handy person from Langhorne, PA says:
I reviewed all your pictures but am unable to match the ends of the channel balance I need. Pictures are enclosed. Markings on the channesl are 23 D and B.S.I. Width of the channel is 9/16" and the width on the channel plastic top is 1-7/16, bottom is 7/8.

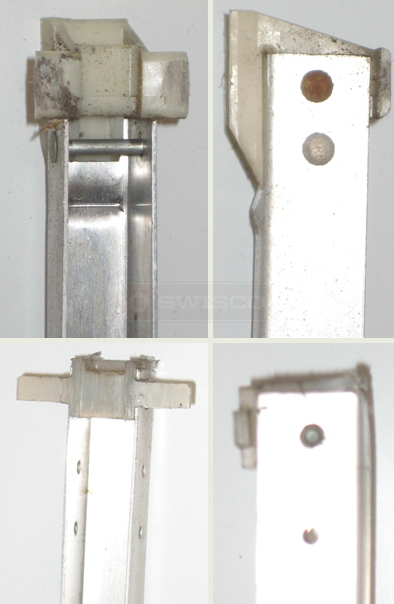

A customer submitted photo of channel balance attachments.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for posting, and for the clear images. It looks like your top attachment is our 19-037, paired up with our 15-005 shoe. This will require your balance to be custom made. Before we begin with that, however, can you please tell me the length of the metal channel? Please do not include the plastic attachments in your measurement.
A handy person from Langhorne, PA says:
Length of metal channel is 24", width is 9/16". Will need six pieces.
Thanks.
Profile picture of Paul
Paul from SWISCO responded:
Thank you. In that case, please take a look at this Custom Channel Balance Order Form that I have started for you and fill out the rest of the information. One of our representatives will be in contact with you shortly thereafter.
