Channel balance for non tilt window.

A home owner from Gilbert, AZ says:
I need two Channel Balance for a non tilt window, width is 1/2" and length is 31" from just ends of metal case. Numbers and letters on metal case:
30 4 HV CMC 7. I have additional photos if you need to see more.

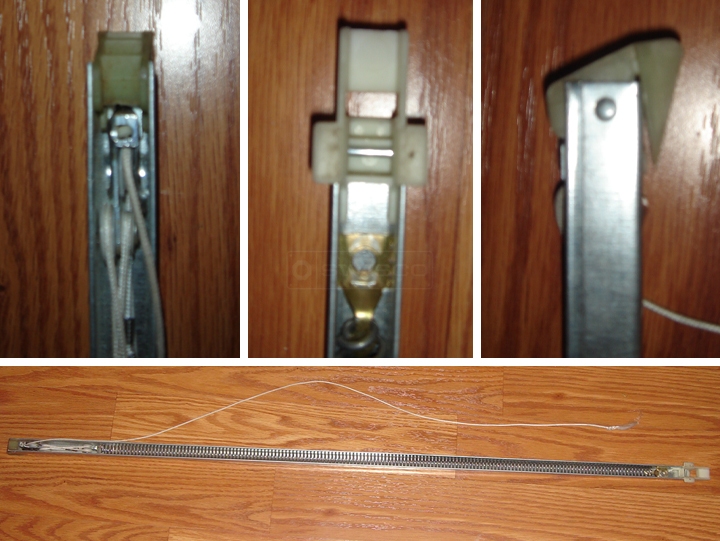

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. Looks like this balance has a winged top attachment but a non-winged bottom attachment. I need to figure out what your bottom shoe is. Please look at the measurements for our 15-001 and 15-002 bottom shoes and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively. Which measurement more closely resembles your own shoe?
Comparison of 15-001 & 15-002
A home owner from Gilbert, AZ says:
The bottom shoe is 1-1/8. Thanks
Profile picture of Tom
Tom from SWISCO responded:
Great! Take a look at the S395-31 with the 3040 option. Let me know if you have any questions.
