Channel balance length of 20-5/8"

A contractor from AZ says:

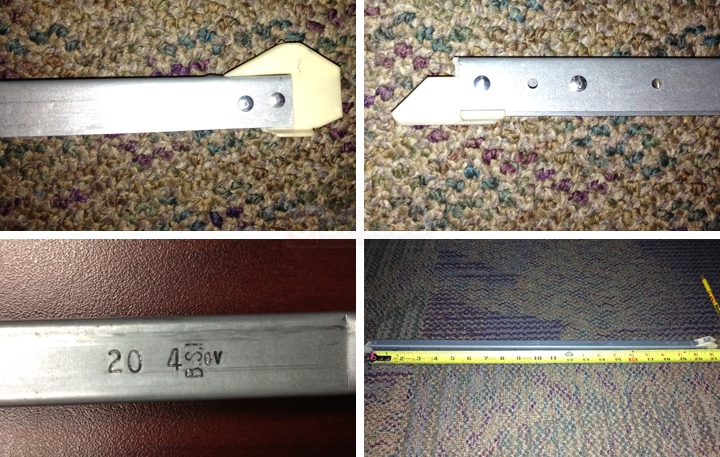

I have identified the appropriate channel balance for my milgard windows with the 19-005 top and 15-004 shoe, however my existing channels measure 20-5/8" not 21". Is this 3/8" delta a problem or should I be looking at another channel?

The channel stamp is "B.S.I. 20 4 OV"
User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! I don't believe that you have our 15-004 shoe. Yours is a special shoe that is only available through a custom order. I'd be more than happy to set one up for you, but I just need to see one last thing.

There should be a metal clip at the end of the string. Could I see a few pictures of it? I'll need to identify it before we can move on with the custom order.
A contractor from AZ says:

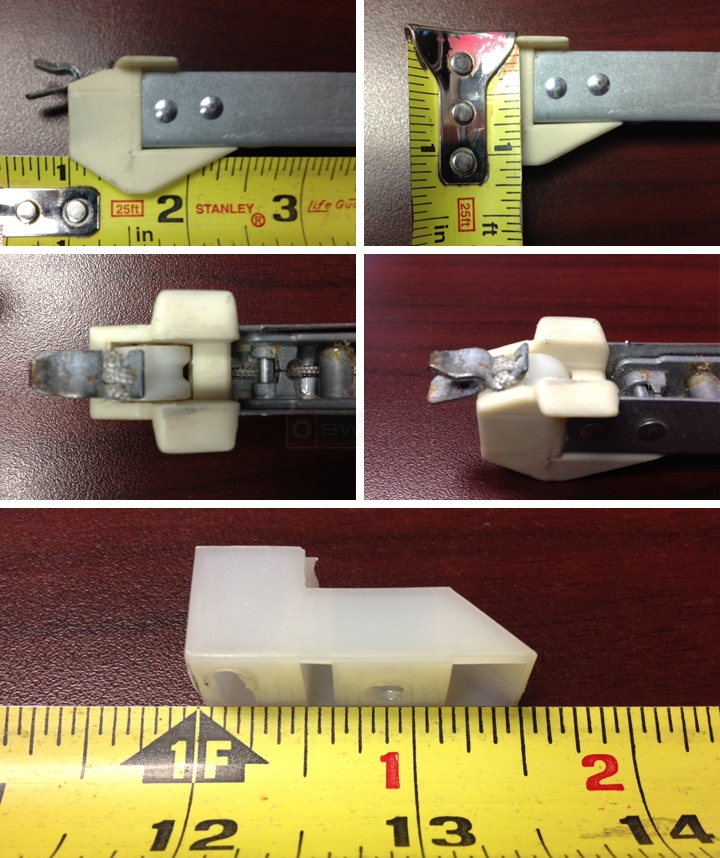

Thanks for your timely response. Attached are the photo's you requested. Additionally, I have included photo's of the top sash guides which I will need as well. In total, I need 6 channel balances and 6 sash guides.
Thank You
User submitted photos of a window balance.
Profile picture of Donna
Donna from SWISCO responded:
Thank you for posting additional detailed images.
For the top sash guide, we recommend taking a look at SWISCO product code 18-008, this could work as a possible substitute.
As for the needed replacement window balances, I will email you a custom ordering link shortly.
A handy person from Long beach says:
I have the same top, shoe and metal clip as this original poster. My balance says 25 5 BSI. Does that mean that I can't use the parts he mentioned (I was going to order those same parts). I won't spend too much on custom parts, so I'm hoping they work. Also, the balances are way to strong for the window. They should be about a 25 2.
Profile picture of Tom
Tom from SWISCO responded:
Unfortunately, our S385-21 will not work for you. These balance systems are very specific and very delicate, and you'll need the hardware that was precisely made for your window.

I would be happy to help you get what you need, but since your existing balances are too strong we will need a bit more information. Can you give me the weight of your window sash? That will help us find the appropriate stamp option.
A handy person from Long beach says:
My sash weighs 11 or 12 lbs.
Profile picture of Donna
Donna from SWISCO responded:
I will email you a custom balance ordering link shortly!
A contractor from Arizona says:
Just thought I would let you all know parts ordered and sent based on your help are working great. Additionally, even though the parts required custom order the price was surprisingly reasonable.
