Channel balances

A quick learner says:
May 29, 2017
I'm having a difficult time finding balances for the old Hallmark window my problem is the bottom shoe on the Hallmark balances wit is less than an inch it's probably 15 16.
Profile picture of Tom
Tom from SWISCO responded:
June 1, 2017
I'm not sure I understand your measurements. Could you be more specific? Can you also show me pictures of the attachments on either end of your balance?
A quick learner from Tucson az says:
June 9, 2017
The balances I need the bottom shoe is one inch the width of the balance is 1/2 inch the depths is 5/8 of an inch. The markings on the balance 27 3 and there is some small markings BS I believe I and off to the side is Po. Enclosing pictures. Window is a Hallmark

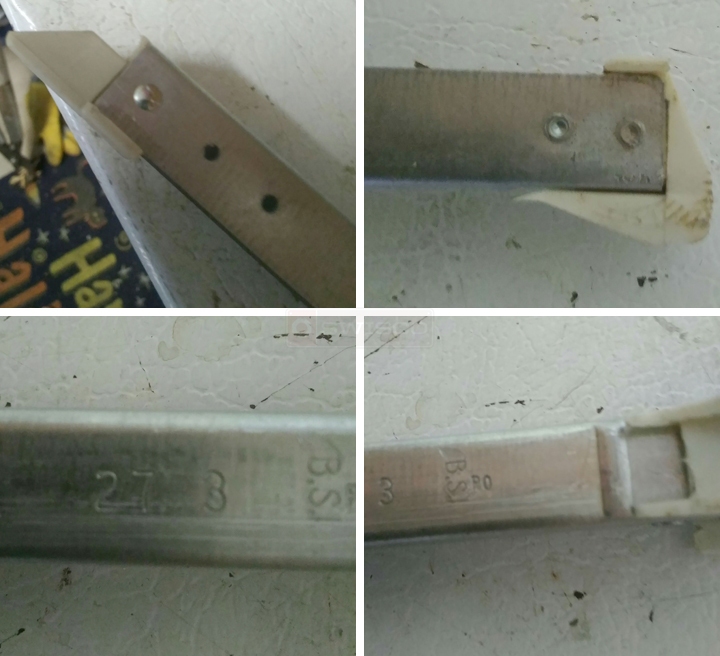

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
June 12, 2017
Please take a look at our S385-28 channel balance with a 2730 option and let us know if this could be a match for you.
A quick learner from Tucson says:
June 15, 2017
If you will notice in the second picture. The shoe for the bottom is only about 7/8 to an inch wide. That's where my problem lies. Most balance that I've tried to shoot is over that dimension and binds the window. Thank you
Profile picture of Tom
Tom from SWISCO responded:
June 19, 2017
The depth of your shoe looks to align with the 15-004 at a glance, but it's hard to tell just by eyeballing it. The smallest shoe we have in this style is our 15-005 at 1" (it comes with the S380-28). If 1" is still too deep, you can always shave it down a little.
Winged Channel Balance Shoe, 1-3/32" Depth
Winged Channel Balance Shoe, 1-3/32" Depth
15-004
$0.74
28" Series 385 Channel Balance
28" Series 385 Channel Balance
S385-28
$10.97
