Choosing the right size Drawer Guide

A quick learner from Tampa, FL says:
I have an old dresser with broken drawer guides. I need help making sure I choose the correct size. My current track guide measures as follows:

Top track width = 13/16" (the track itself measures 11/16")
Bottom(inner?) track width = 7/16"
Track height = 5/16"

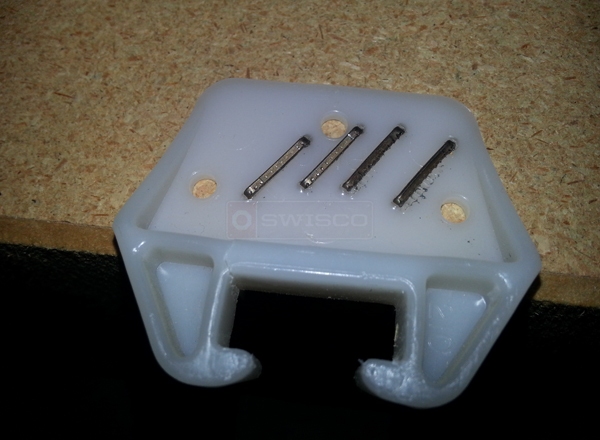

User submitted a photo of a drawer guide.
Profile picture of Tom
Tom from SWISCO responded:
Hey, thanks for posting. have you seen our 32-030? Your sample looks a lot like it. Let me know if you agree.
A quick learner from Tampa, FL says:
It looks like the right one. Thank you for your assistance. I will order a few and update the discussion with the results. :)
