Coil Balance Shoe ID

A quick learner from United Kingdom says:
I've attached some pictures of the item I'm trying to source.
Any ideas?
Many Thanks

John

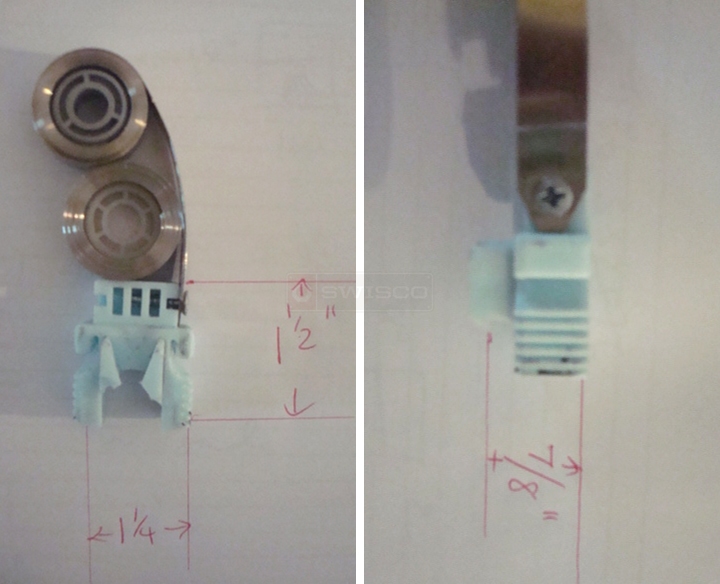

User submitted photos of a coil balance.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting, John. Can I see a few pictures of an undamaged version of the pivot shoe? I'd also like to see the tilt bar that the sash uses. Thanks!
A quick learner says:

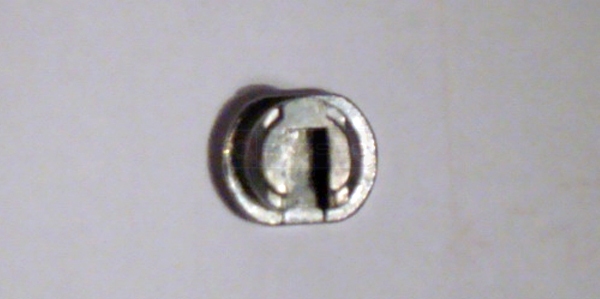

Hi Paul. I only have damaged examples; attached are a couple of pictures of the metal tilt cam. Hope this helps?
User submitted a photo of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
I see. It's still very hard to tell, but based on the information you've given so far I think you might want to consider our 15-177. Carefully compare it to your hardware as best as you can and see how they match.
A quick learner says:
Thanks Paul I'll have a look. I have also noticed that the moulding on mine has the number 141 on it?
Profile picture of Paul
Paul from SWISCO responded:
I do not know what that number is indicative of. It could just be a factory stamp.
