Counterbalance

A quick learner from Ohio says:
June 21, 2017
There are no numbers, names or markings. The window company couldn't find anything either. I just need one.

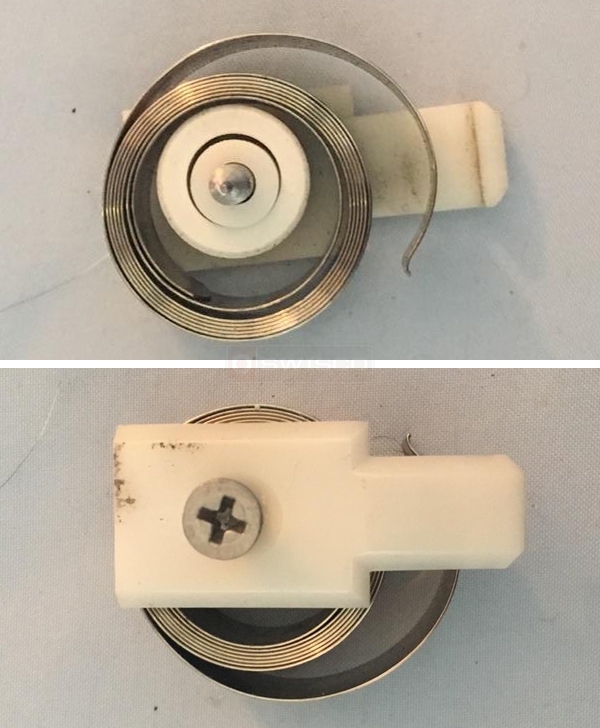

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
June 23, 2017
Can you show me a picture of the pivot shoe used in this balance system? That will help us determine the best spring.
A quick learner from Ohio says:
June 24, 2017
There is nothing else in the window. Did find a form that says they are capitol windows model 8800.
A quick learner from Ohio says:
June 26, 2017

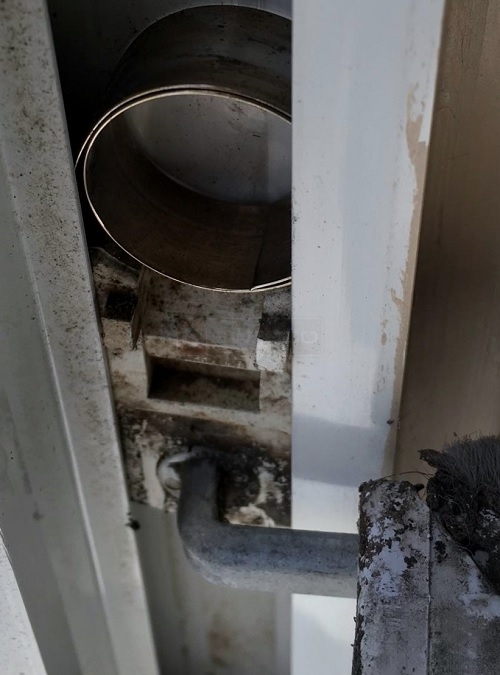

Here's another picture
coil balances
Profile picture of Tom
Tom from SWISCO responded:
June 28, 2017
Thanks! That's exactly what we needed to see. That looks like our 15-180 pivot shoe, which commonly uses the Series 190 coil spring. You'll need the number off the old spring to determine the best Series 190 option.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
Balance Bushing
Balance Bushing
15-182
$1.80
440 S190 Coil Balance Spring
440 S190 Coil Balance Spring
S190-440
$9.74
