Counterbalance ALENCO

A handy person from Lambertville N.J. says:

July 22, 2017

Howdy! I need to replace a counterbalance for an ALENCO single hung tilt window. The dimensions are the 9/16" wide (1/2") non-ribbed channel. Overall length is 26". Please see pictures attached.

Let me know what you think!

Thank you. Jeff D

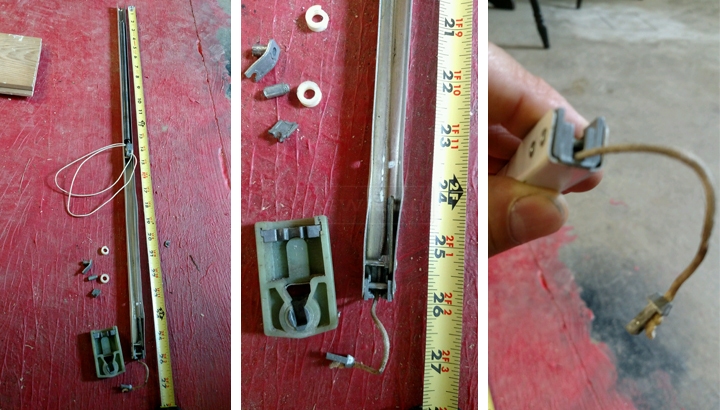

User submitted photos of a window balance.

Tom from SWISCO responded:

July 26, 2017

This looks a lot like our Series 770 channel balance. Take a look and see what you think. You will need the stamp from the old balance to determine the best option. As for the shoe, see our 15-129. This may be a good match but I recommend going over our dimensions to confirm.

A handy person from Lambertville N.J. says:

July 26, 2017

Thanks for the reply. Just exactly what do you mean by the "stamp"? Is that some kind of part number embossed on the piece somewhere?

Tom from SWISCO responded:

July 26, 2017

Yep! A stamp is any kind of numbers either stamped on or engraved into the balance. It's indicative of the spring strength rating. You can see a list of stamp options we have on every Series 770 store page and how much weight each one can support.

A handy person from Lamberville N.J. says:

July 26, 2017

Thanks, I will take a look at the balance to see if I can find any identifying markings. Will let you know if I cannot figure it out. Thanks for the help!

A handy person from Lambertville N.J. says:

July 26, 2017

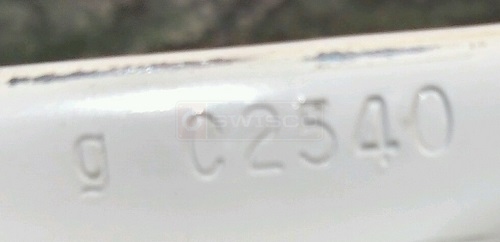

Here is a picture of the Stamp. Looks to be: g C2540 Can you cross reference your part number? Thanks!

Tom from SWISCO responded:

July 31, 2017

Thanks! That stamp is a little atypical. I think your best bet is to weigh your sash on a scale to confirm the best option.

Pivot Shoe, 9/16" Thick

15-129

$2.50

26" Series 770 Balance

S770-26

$12.59
