Del Mar engr pat# 3,670,357

A home owner from Commerce Ca says:
I seen your post on this patent number, but as you can see from the attached pictures I do not have a tab.
Over all length is 2.289", higth is 1.375" not including tab or roller, width by screw and tab is .710, tab higth is prox .767

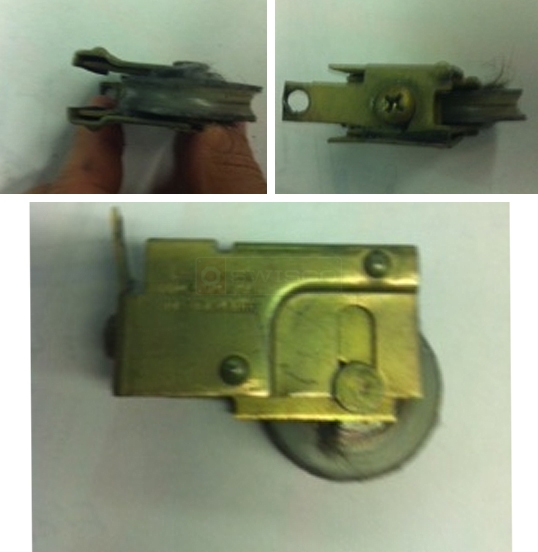

User submitted photos of a roller.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! Could you also give me the wheel diameter, as well as the total width of the housing? Thank you!
Profile picture of Tom
Tom from SWISCO responded:
No, I would like the width for the main housing. Thank you!
A quick learner from Commerce ca says:
The wheel is 1-3/8 ( but worn) are you talking the wheel housing width?
A quick learner from Commerce ca says:
As stated above, prox .710
Profile picture of Tom
Tom from SWISCO responded:
Thank you for your patience in this matter. After extensive research, we have been unable to find this exact roller. However, you may want to consider our 81-077 Sliding Patio Door Roller with a 1-1/4" Diameter Steel Concave BB Wheel. Do you think you could use this as a substitute?
