Help for 70-218 installation

A handy person says:

Do you have video or manual, how to install Pella Knife Latch 70-218 ?

Profile picture of Tom
Tom from SWISCO responded:
Sure! To replace this latch, first grip the tab at the end of the clip with pliers and rotate it out of the channel, as if you were opening the clip. It will take a little elbow grease, but the clip can be pulled out of the channel this way. For the new clip, grab the internal tab with pliers and bend it towards the interior. Then insert the back corner of the clip into the slot and rotate it into place. See the image below for a little aid and let me know if you have any other questions!

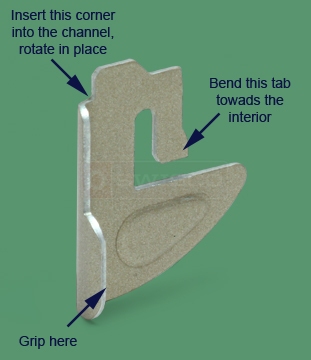

SWISCO guide on installing the 70-218.
