Door latch

A quick learner from NJ says:
June 20, 2017
I need a replacement latch like 40-117, but need to know the opening size where the spindle fits into. I need 0.25 inch.
Profile picture of Tom
Tom from SWISCO responded:
June 26, 2017
The 40-117 is made to work with a spindle like our 40-038, which does not appear to match your specifications. Can you show me a picture of the old latch and spindle you have now? That would help us find something closer.
A quick learner says:
June 26, 2017

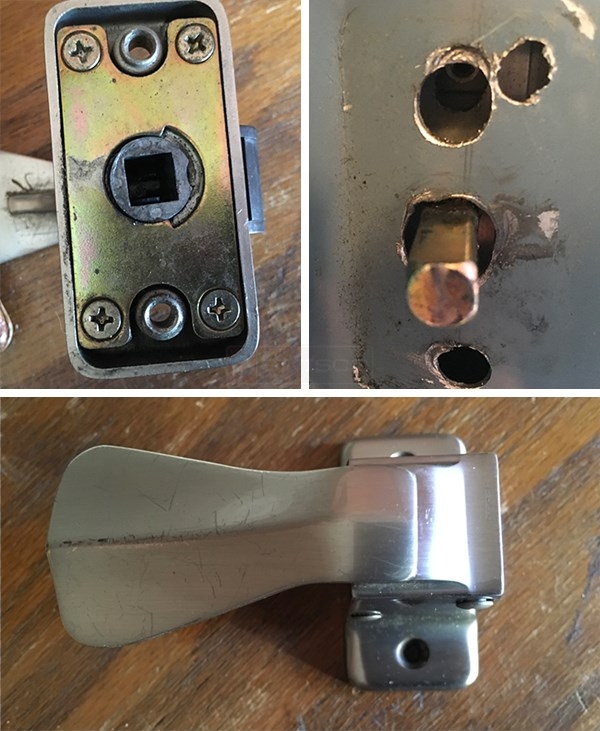

Pics attached
Door latch
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
June 29, 2017
Please see our 40-150. This can take either a large or a small spindle depending on whether the spacer in the handle installed or not. However, it is a turning-type inside handle, while yours is a push-type handle. If you don't think that it will work on your door, you might need to replace the complete handle set with something like our 40-058. Let me know what you think.
Inside Latch, 1-3/4"
Inside Latch, 1-3/4"
40-117
$9.87
Storm Door Handle Spindle
Storm Door Handle Spindle
40-038
$3.20
Inside Handle, 1-3/4"
Inside Handle, 1-3/4"
40-150
$14.70
Storm Door Latch, 1-3/4"
Storm Door Latch, 1-3/4"
40-145
$11.75
Lever Handle With Deadbolt Set
Lever Handle With Deadbolt Set
40-058
$70.45
