Double hung bottom pivot pin

A quick learner from Ocean City, MD says:
I need to replace the bottom hung pivot pins that attach to the spiral balance rods.

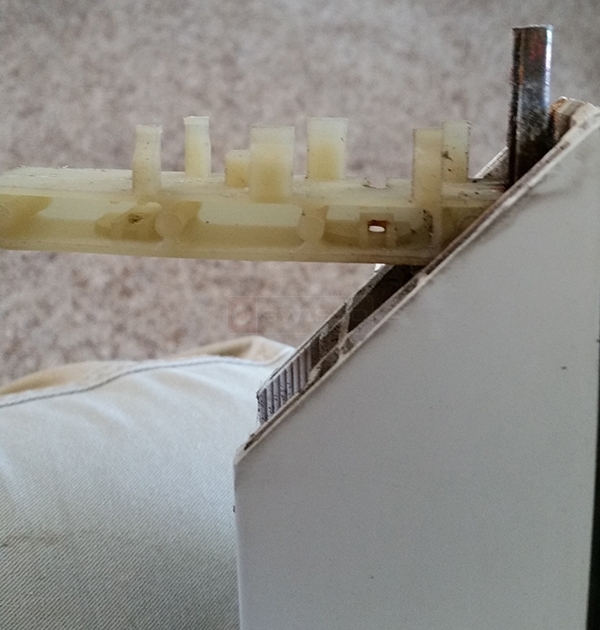

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
It's hard to make out. If all you need is the pivot bar, see our 26-089 to start out. I would just make sure that our dimensions are the same as yours.
A quick learner from Ocean City, MD says:
I thank you for identifying the pivot bar needed for my window. #26-089. I also require the plastic 90 degree part that the pivot bar mounts into. The plastic 90 is 3" x 3". On the side that the pivot bar mounts there is a spring to keep tenting on the bar. That side of the bar 3" x 3/4" x 3/4". The other side of the 90 there are two holes 1" and 2" from he has end to attach to the window frame.

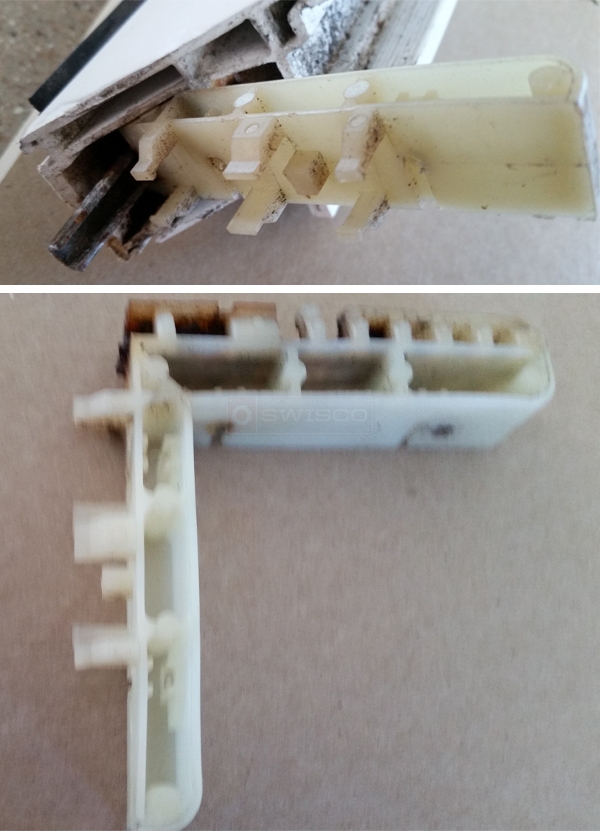

User submitted a photo of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
I'm afraid we do not carry that corner carrier. We have seen it before but it is not something we have ever been able to replace.
