Double-hung vinyl Sierra Windows Concept hardware

A home owner from CA says:
Hello, First of all, I love your website! I have a SWC double-hung vinyl window. Looking for the following parts:

The window is H-52", W-35"

1- The metal pin that is attached to the bottom of the window and slides into each side of the plastic holder that is attached to the balancer. -Both L and R pins are broken

2- The plastic bar on each side that balancer spring is hooked on to it and window metal pin inserts into it. These are the bars that slides up/down. -Both L and R plastic bars are broken

3- Sash balancer for L and R. -Both need replacement

Pictures are attached. The label inside the window is also attached

Please let me know if these parts are available

Thanx and regards

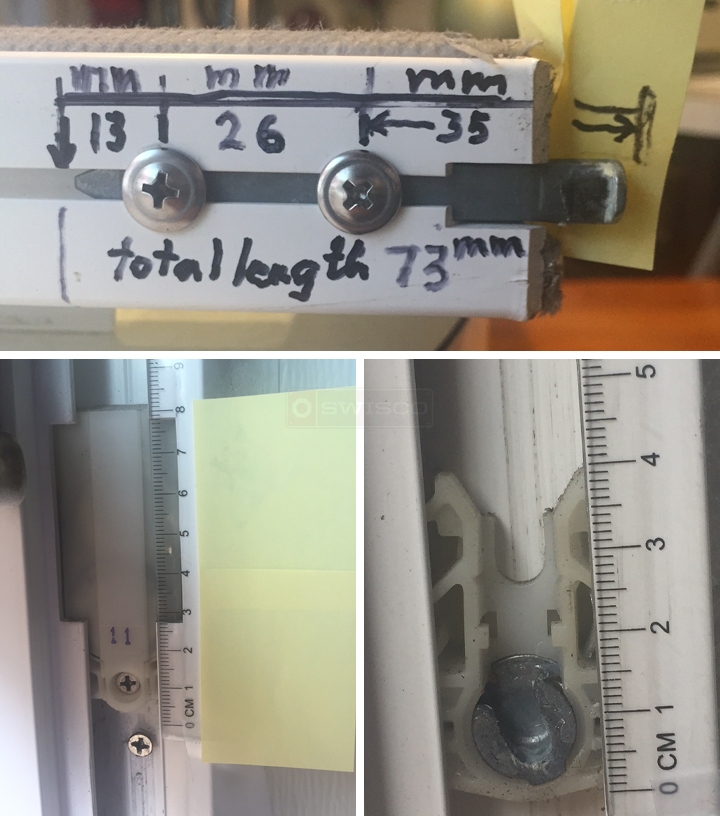

User submitted photos of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
Check out our S140-11, I think this is a good match. For the pivot bar, see either our 26-405 or 26-398.
A home owner from Glendale, CA says:
RE: Reference number: D68430
Thank you Tom,
Excellent service to identify my broken parts. I just placed the order. ETA is 5/26.
Profile picture of Tom
Tom from SWISCO responded:
Great, thank you very much for the order! I'm happy to help. Let me know how it works out!
