Double hung window parts

A purchasing agent from New Rochelle says:
September 16, 2013
Good morning,
Please identify the attached parts.

Thank you,
Mike
User submitted photos of a window balance.

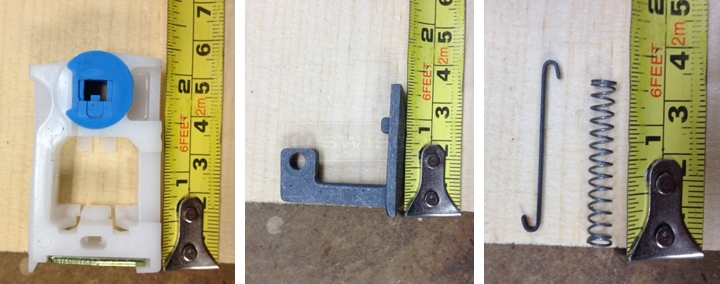

User submitted photos of window hardware.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
September 19, 2013
Hey, Mike. Starting with the smaller stuff, check out our 15-015 pivot shoe, 26-016 spring and 26-017 spring retainer, 26-040 pivot bar, and finally our 26-094 dust cover. You can also see them on the right side of this page.

The balance is a little trickier, though. 46" is a very large balance. We may be able to custom make it, but I will need to ask a few questions first. Can you confirm that the spiral tube diameter is 5/8" (or 9/16")? Can you also tell me the weight of the sash?
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-015
$1.55
Dust Cover
Dust Cover
26-094
$0.91
3/16" x 1-1/4" Spring
3/16" x 1-1/4" Spring
26-016
$0.31
1-1/4" Spring Retainer
1-1/4" Spring Retainer
26-017
$0.41
