GU operator

A handy person from illinois says:
February 24, 2015

Plastic GU operator. What do you think?

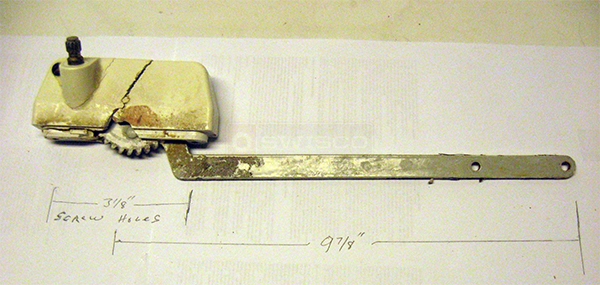

User submitted a photo of a window operator.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
February 25, 2015
I recognize this operator. I'm afraid it's no longer available and does not have a substitute. What I had done in a pinch was to use our 39-027E. I had to remove the end bearing from the 39-027E to make room. Then, I had to rivet off the end piece of the old operator to put on the new. It is not a quick fix, and you might want to consider replacing the complete window to be perfectly honest. If you want to try and fix it with the 39-027E you will also need a handle like our 39-114 or 39-114L.
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
