Garage window balance

A quick learner from OAkdale, CT says:

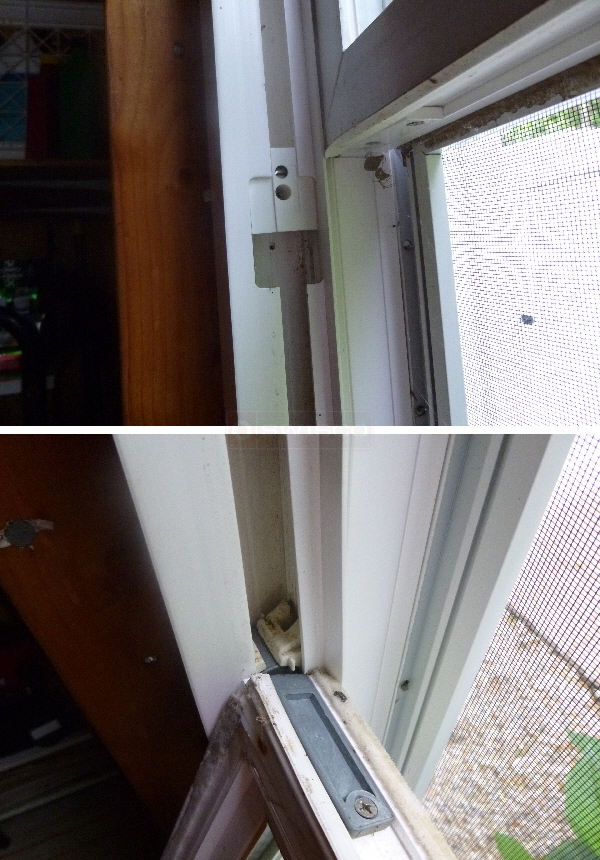

I recently bought spiral balances from your company and have installed them in all my windows (the windows work great). However, in my garage I have no balances per say, they look like friction blocks. I have attached two pictures, one of the top of the block, the other of what appears to be an opening to remove the block. I
User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
You have an old Certainteed window. The pivot shoe and tilt bar look okay. You just need to replace the 3/4" wide coil spring. Our Series 170 may be what you need. All you need to do is match up the number printed on your existing coil spring to the options available for the Series 170.
A quick learner from Oakdale, CT says:
So, how do I get to this coil spring. Do I twist the window out like my other windows (spiral balances) or do I raise the stop block and remove the window from there. Is there a video of this on your web site. Thanks, Will
Profile picture of Paul
Paul from SWISCO responded:
We do, as a matter of fact. Check it out below. The balance featured in this video is a little different than yours, but the principle is the same.
A quick learner from Oakdale says:
I finally removed the coil spring from my garage window. I do not see any numbers on it. I have attached a picture. Here are some details. From the top of the window to the pivot point, it is 29 inches. The width of the steel is 3/4". The sash weighs 18#. Is this enough info to allow you to recommend 4 replacements? Thanks, Will

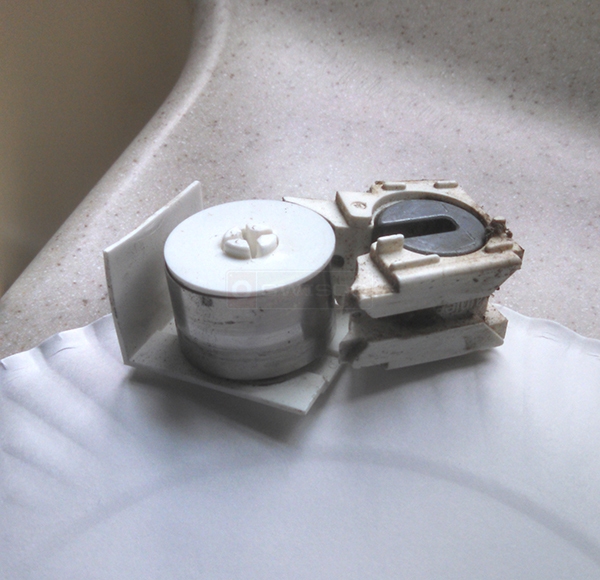

User submitted a photo of a coil balance.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for the additional information. For an 18 pound, sash I recommend our S170-409 3/4" coil spring. If you also need the pivot shoe, see our 15-192.
A quick learner from Oakdale says:
I received the coil balances and the new shoes for my garage windows and installed them over 4th of July weekend. They work like a champ. Your videos really help. Thanks.
