A distributor from Louisville, Ky says:
November 3, 2016
To whom this may concern,

I have a customer that had the coils on their window broken. In the picture attached, I need to know where I can find a replacement of this whole part.

Thank you,
Kevin

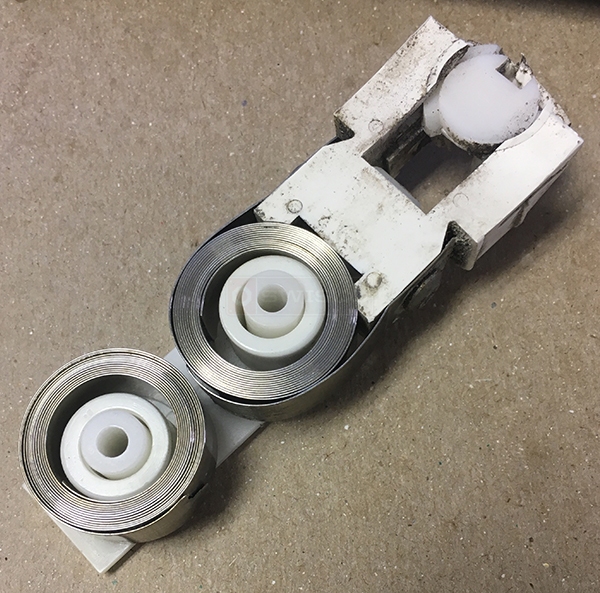

User submitted a photo of a window balance.
Profile picture of Casey
Casey from SWISCO responded:
November 7, 2016
Thanks for posting, Kevin. I'm confident we can help, yes. Based on your pictures, it looks like possibly the pivot shoe is damaged. See our 15-180, I believe this is a match. If the other parts of this balance set are undamaged, there's no reason you can't re-use them. If you do need replacement springs, though, see our Series 190 coil springs.

Another possibility would be our Series 140 balance, which is an entire coil balance kit in one. However you would need to check to make sure it will fit into your window frame. Also note that the pivot bar would need to be replaced to work with the new system, either the 26-398 or 26-405 will work with the Series 140.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Double Support Detent Clip
Double Support Detent Clip
15-181
$6.17
Balance Bushing
Balance Bushing
15-182
$1.80
#8 x 1/2" Truss Head Stainless Steel Phillips Screw
#8 x 1/2" Truss Head Stainless Steel Phillips Screw
33-073
$0.23
