Graef window part

A landlord from Troy, OH says:
We had Graef windows installed in our public housing apartments back in 1998. We are running low on the pivot part. I have tried to contact Graef Window Corp. & they are no longer in business.

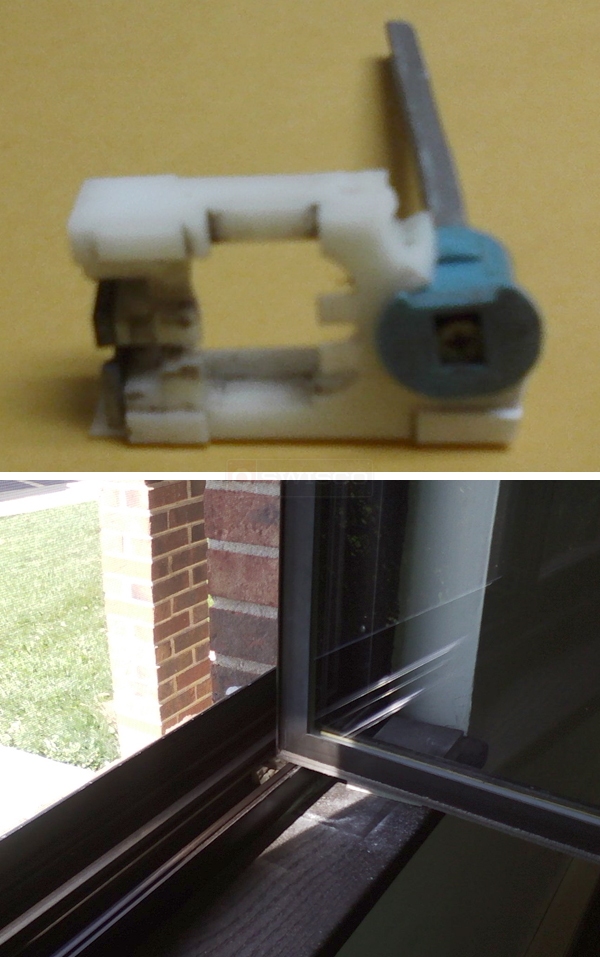

Not sure what the part is called, but I have attached a picture of the part needed & a few pictures of the window where the part is located. The window swings in for easy cleaning so I asume it is a pivot something or other.

Can you help?

Thanks.
Michele
User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Your pivot shoe looks a lot like our 15-015. Please look it over and let me know what you think. As for the pivot bar, we would like to see a picture of it by itself. We would also like to know its dimensions, especially the hole placement. Thanks!
A quick learner from Troy, OH says:

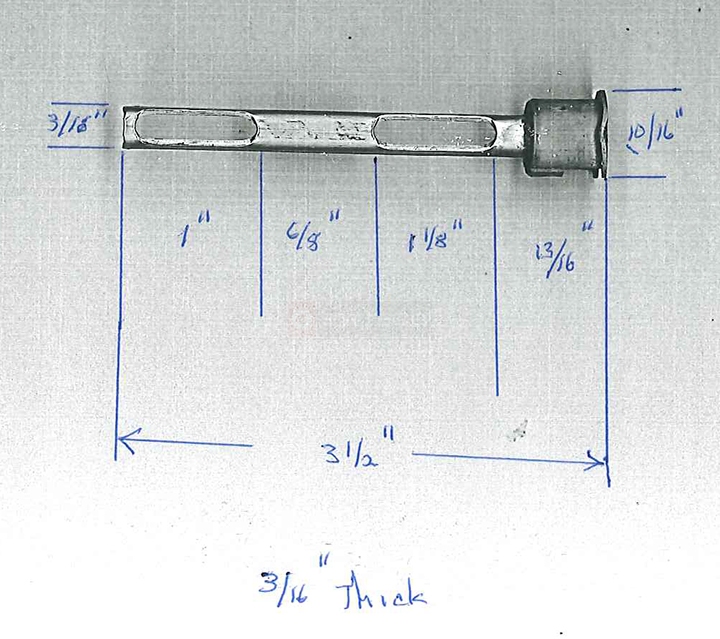

I have attached a copy of the Pivot Bar with dimensions.
User submitted a photo of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
Thank you! I would look at our 26-068 pivot bar, this seems to be a good match. Please note that your pivot bar is still in the pivot shoe cam. These are two separate parts, so you shouldn't count the cam when measuring your pivot bar.
