A handy person from ANKENY, IOWA says:
ONE PICTURE IS OF BROKEN PART AND ONE IS NOT BROKEN. THIS IS THE PART THAT THE PIVOT ROD AT THE BOTTOM OF THE WINDOW INSERTS INTO WHICH I ALSO NEED. I WAS HOPING YOU COULD DETERMINE WHICH PIVOT ROD I HAVE ALSO. I CAN GET THAT INFO LATER IF NEEDED. I WILL ALSO NEED THE SPRING CYLINDER BUT WAS UNABLE TO REMOVE IT AT THE TIME. I CAN GIVE THAT INFO AT A LATER DATE.

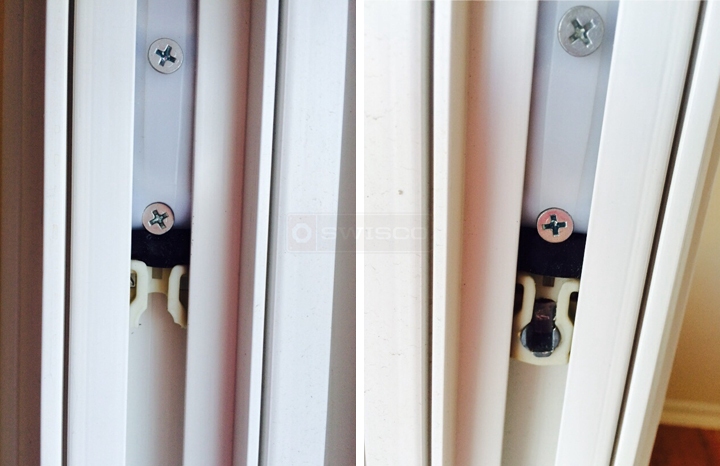

User submitted photos of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
Looks like the part that is broken is your pivot lock shoe. Check out our 15-111 for a possible match. Do the dimensions match?

If you also need the spring, and if our 15-111 matches, then look at our Series 160 or Series 165 coil springs. These both work with the 15-111.
