Handle & lock

A quick learner from Houston, TX says:
June 26, 2017

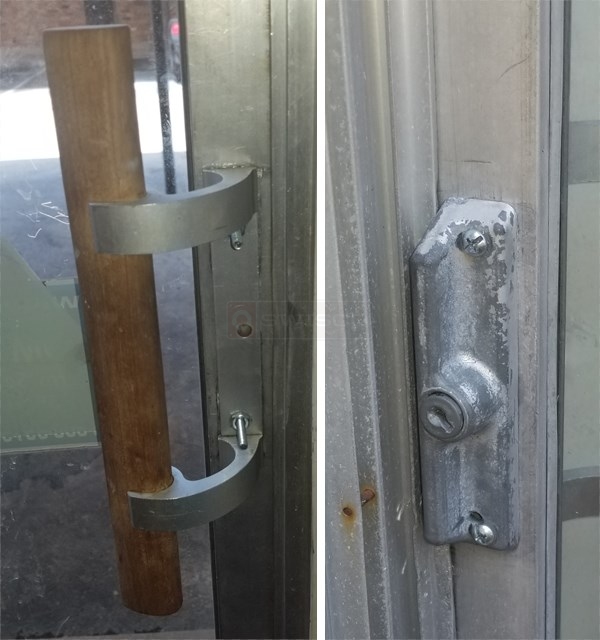

I need to replace this handle and lock on my sliding glass door. I have attached two photos showing the handle on the inside and the lock on the outside. I have no other info. Thanks.
-- Jack
Handle
Profile picture of Tom
Tom from SWISCO responded:
June 29, 2017
We may be able to help, but we will need more information before we recommend anything. Can you tell me the distance between the two installation screws, center-to-center?
A quick learner from Houston, TX says:
June 29, 2017
It's just a tad over 4 inches. Maybe 4 and 1/16 or 4 and 1/8.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
July 3, 2017
I believe you have an older Keller patio door. This handle is no longer available. You will need to install our 82-005 surface mounted handle as a substitute. You will have to drill new mounting holes to accept the different hole pattern in the 82-005. You will also have to install the surface mounted keeper on the side door jamb. I recommend installing the handle first, then the keeper. When installing the new handle, drill the new holes in the same vertical line as the old holes so as to not damage the glass in the door.
Surface Mount Sliding Door Handle Assembly, 4-15/16"
Surface Mount Sliding Door Handle Assembly, 4-15/16"
82-005
$27.90
Reversing the thumb lock on the Swisco 82-005 Sliding Door Handle
Reversing the thumb lock on the Swisco 82-005 Sliding Door Handle
VIDEO
WATCH >
How to Replace a Surface Mount Handle Assembly
How to Replace a Surface Mount Handle Assembly
VIDEO
WATCH >
How to maintain a sliding glass door
How to maintain a sliding glass door
GUIDE
READ >
