Harvey window pivot bar

A home owner from Andover, Massachusetts says:

September 8, 2012

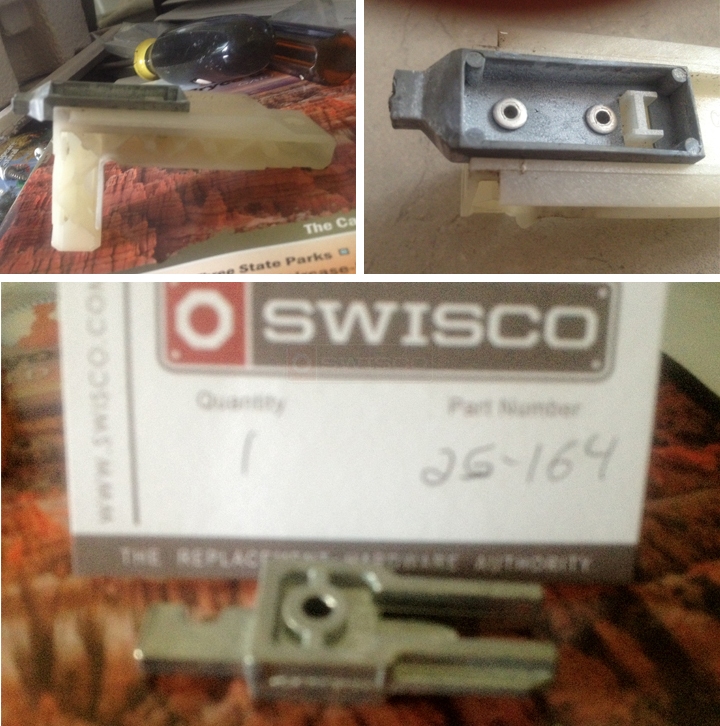

I have some triple pane vinyl windows (Classic CVDH) from 1987 with a broken pivot bar on one side (the Harvey part # is 1658). I ordered Swisco part 26-164 (photo #3) last year because the pivot looked the same as the Harvey. I just opened the window frame and found that the pivot bar has a different interior section and in fact, the Harvey pivot bar appears to be a unit that is riveted in two places to a right angle plastic piece (see, photos #1 and #2). Do you have a replacement for the Harvey pivot bar unit?

Thanks for your help.

Tom from SWISCO responded:

September 18, 2012

Thanks for posting! I'm sorry to hear that our hardware didn't work out for you. I see that your original pivot bar pictured here is damaged. Is there any way we can see a picture of one that is undamaged? Could you also give me its dimensions? Thank you!

A handy person from Andover, Massachusetts says:

September 23, 2012

Here is the diagram of the dimensions a few more pictures from different angles. Thanks again.

Casey from SWISCO responded:

September 25, 2012

Great! Thank you for the extra pictures. This helps clear things up.

Have you seen our 26-376 Window Sash Pivot? Do you think you may be able to use this as a replacement?

A quick learner from Andover, Massachusetts says:

September 30, 2012

Thank you for the suggestion. Unfortunately I see two problems: First, the 26-376 does not have the cutaway in the pivot. Second, the pivot bar that I am looking for appears to be riveted in two spots and I could not figure out how to separate it from the plastic unit. I was hoping to obtain an entire pivot bar and plastic unit.

I appreciate your help, and hope you can find something like that.

Thanks again.

Tom from SWISCO responded:

October 9, 2012

Thank you for your patience in this matter. After extensive research, we have been unable to locate a replacement for this pivot bar. I believe that it has been discontinued, and is no longer available. I am sorry we cannot be of more help.
