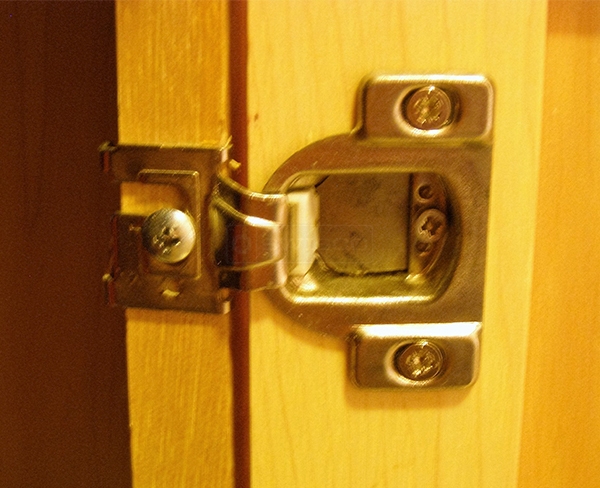

The tallest dimension is 2 1/4" (part of hinge connected to the door that moves (opens and closes)
The widest dimension (width of hinge, both parts) is 2 3/4"
The dimensions of the hinge part that does not move is 1" wide and 1 1/4" high (the part not on the door that opens and closes but on the frame)
There is no name on the hinge only the number 0308767
Tom from SWISCO responded:
April 7, 2017
I'm afraid we don't have this exact hinge, but our 32-343 is very similar. Check it out and see if you could get this to work for your cabinet.
