I need all hardware for a set of bi fold metal doors. Please see attached photos.

A contractor from Lake St Louis, MO says:
October 24, 2014
Hello,
I need help getting all new hardware for the set of metal doors I have for a customer. Please see attached photos.

I would like to get all new pins, mounting brackets for pints and upper lower track as well.

Please let me know your thoughts on cost, eta on parts and shipping cost to 63367, lake st louis, MO


Thanks,
Jonathan

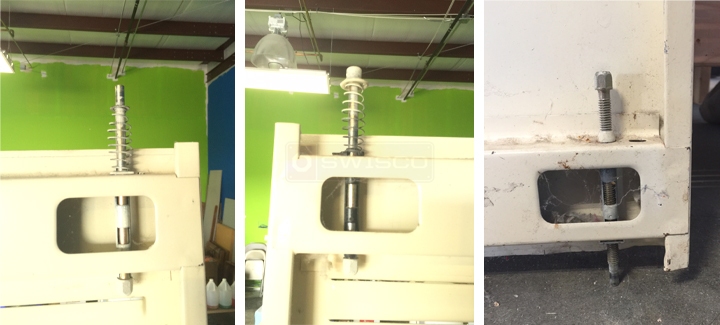

User submitted photos of a bi-fold door pin.
Profile picture of Paul
Paul from SWISCO responded:
October 28, 2014
I believe you have a Float-A-Way bi fold doors. Is that name familiar? If so, then the parts you should consider are our 21-022 guide pin, 21-023 bottom pivot pin, and the 21-024 top pivot pin.
A quick learner from Lake St. Louis says:
October 28, 2014
What about the upper and lower track?
Profile picture of Paul
Paul from SWISCO responded:
October 29, 2014
Oh, I'm sorry, I missed that part! I'm afraid we do not have the tracks for these bifold pins. If you need those replaced, as well, then you can substitute with our 21-401, 21-402, 21-403, or 21-404. However, you will also need our 21-100 nylon caps for the pivot pins (21-023 and 21-024, which I mentioned before). This will allow those pins to fit in these new tracks. You can tap the caps on with a mallet.
Bifold Door Bottom Pivot Pin, Float-Away
Bifold Door Bottom Pivot Pin, Float-Away
21-023
$3.92
Bifold Door Guide Pin, Float-Away
Bifold Door Guide Pin, Float-Away
21-022
$3.87
Bifold Door Top Pivot, Float-Away
Bifold Door Top Pivot, Float-Away
21-024
$3.20
Bifold Door Pin Cap, Benchmark
Bifold Door Pin Cap, Benchmark
21-100
$0.78
Bifold Track, 3' Opening
Bifold Track, 3' Opening
21-401
$8.71
Bifold Track, 4' Opening
Bifold Track, 4' Opening
21-404
$12.75
Bifold Track, 5' Opening
Bifold Track, 5' Opening
21-402
$17.15
Bifold Track, 6' Opening
Bifold Track, 6' Opening
21-403
$18.57
