I need help identifying my channel balance

A home owner from Montreal, Qc Canada says:
Good day,

I have included a picture for each sides. It is possible the end pieces have been broken off. The inner spring hook end has broken off. The metal portion measures 33" (metal to metal).

I have a 32C stamped on the metal body.

Thanks for your help,

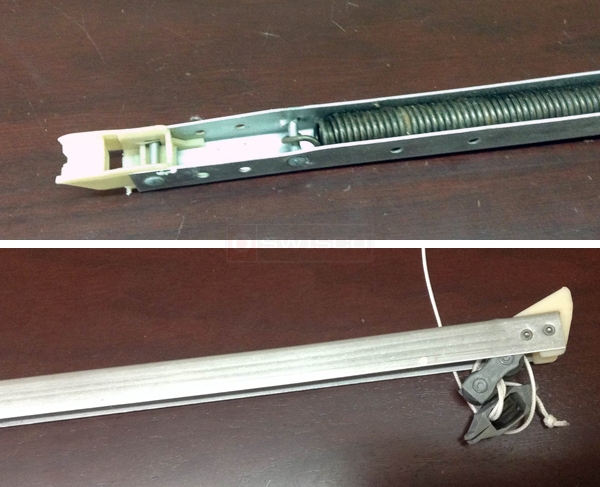

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Hey, thanks for posting. I've narrowed this down to two possible channel balance Series: either our Series 351 or our Series 390.

Now, as you can see, the only difference between these two Series is their bottom shoe. The Series 351 uses the 15-002 while the Series 390 uses the 15-001. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.
Comparison of <a href='http://www.swisco.com/Channel-Balance-Shoe/pd/Replacement-Sash-Support-Channel-Balance-Shoes/15-001'>15-001</a> & 15-002
A home owner from Montreal, Qc Canada says:
It is the Series 351. I have ran a search on your website for the 32C. I think it it has to do with the strength of the spring. Should I put the window on a scale to weigh it?
Profile picture of Tom
Tom from SWISCO responded:
Yes! That's the best way to determine what option you need. Each length we carry for the Series 351 has a chart of options and how much weight they support. Simply cross-reference your sash weight with that chart.
