I need replacement Caldwell Channel Balance

A home owner from Jacksonville, FL says:
I need some replacement balances. The channel is 1/2" by 5/8" with an outside hemmed edge. The writing on the back is "28 3 10 CALDWELL" The metal channel is 29" long NOT including the plastic fittings.

I am pretty sure the top fitting is 19-002 because it does not have flanges.

The bottom shoe resembles 15-001 and 15-002 because it has no flanges. However, mine seems to be a sharper angle.

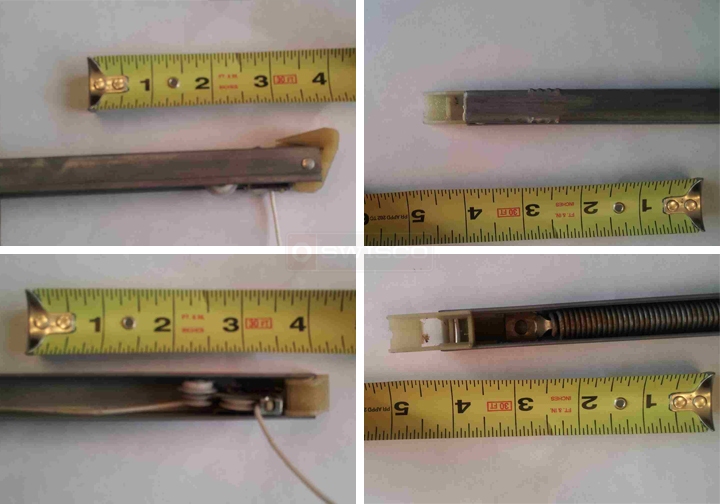

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. The sharper angle doesn't mean much, your shoe was probably just made from a different mold. What's important are the dimensions. Between the 15-001 and 15-002, which is closer to your shoe?
A home owner from Jacksonville, FL says:
Mine is 1" so that makes it a 15-002.
Profile picture of Tom
Tom from SWISCO responded:
Great! Check out our Series 351 channel balance and see what you think.
