Identified Certainteed coils

A quick learner from Brooklyn, NY says:
June 4, 2015
We were able to remove the window and the balance shoes, supports and coils.
The numbers on the shoes are AF87598;
The numbers on the supports are H65 34/5M.
The coil has a 10 on it, with a J underneath.
Both coils have snapped in half (half is on the shoes and the other half is on the supports. We

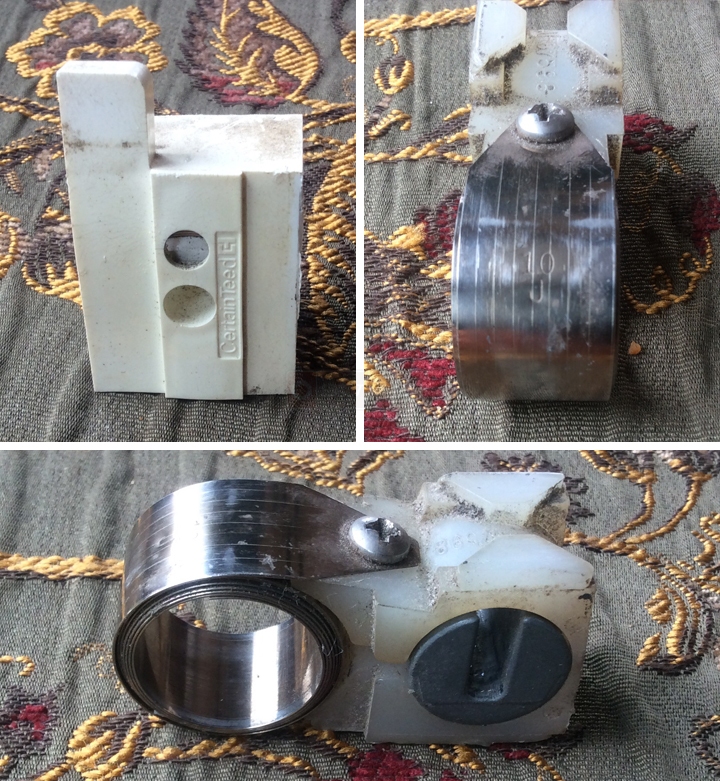

User submitted photos of a coil window balance.
Profile picture of Paul
Paul from SWISCO responded:
June 5, 2015
Thank you for posting. Can you confirm the stamp on your coil springs? I don't know of any that have a 10 pound rating. Also, how many springs do you have on each side of the window?

Can you also show me a clear picture of the pivot shoe? With your sash installed, I can't make it out. It would probably be best to remove it from the window entirely so that we can get a good look. Thanks!
A quick learner from Brooklyn, NY says:
June 5, 2015
The spring does have the number 10 stamped on it and below that stamp is the letter "J". I've taken a picture (att'd). There is 1 spring on each side of the window (these have apparently snapped in half, so it is visible on the pivot shoe & the support on each side). I've also taken pictures of the pivot shoe. Thanks very much for your help.

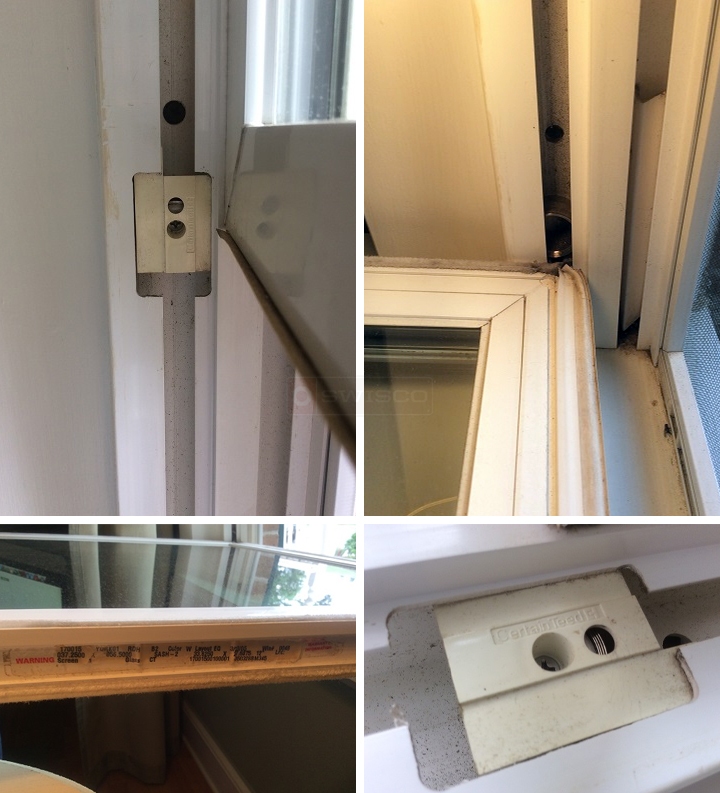

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
June 5, 2015
That is weird! Can you tell me how heavy your sash is? I wonder if it is 20 pounds. In the meantime, I will look into this stamp and see what I can find.
A quick learner from Brooklyn, New York says:
June 5, 2015
Now that you mention it, the sash could weigh 15 + pounds. Hard to tell, but it is pretty heavy. Thanks again.
Profile picture of Paul
Paul from SWISCO responded:
June 8, 2015
I would like to know the exact weight, if possible. You can determine this by removing the sash from the window and placing it on a scale.
A quick learner from Brooklyn, NY says:
June 9, 2015
Sorry I couldn't get back to you yesterday. I was able to weigh the sash - it's just a bit under 17 pounds. I hope that helps.
Profile picture of Paul
Paul from SWISCO responded:
June 9, 2015
Great, thank you. In that case, I recommend our S170-409. Each spring can carry 9 pounds, so using one on each side should be strong enough for your sash weight.
A quick learner from Brooklyn, NY says:
June 9, 2015
Thank you. In addition to ordering two of the S170-409 springs, which pivot shoes and supports should I order to replace the ones on this window. The pivot shoe number is AF87598 and the support number is H65 34/5M.

Thanks once again for all your help.
Profile picture of Paul
Paul from SWISCO responded:
June 10, 2015
Sure! See our 15-192 pivot shoe, 15-156 or 15-185 supports, 15-157 drum and 33-072 screw. Keep in mind you only need to replace the parts that are damaged. If some parts are fine, you can reuse them.
A quick learner from Brooklyn, NY says:
June 10, 2015
Paul: thank you very much for all of your help with this. Everyone we've dealt with at SWISCO has been extremely helpful. Thanks again.
