Identify Constant Force Window Balance

A home owner from Blaine, MN says:
August 30, 2015
Part size 2 15/16 inch by 1 3/16 inch, not including shoe part in photo.

I need two constant force window balances including shoe and coil springs.

Window manufacturer is Hayfield Windows, Double Hung Window #800

Part # on photo is 801020

Window weight is 24 lbs., so need to support 12 lbs. on each side.

Again, I need parts including shoe and coil springs, for both sides of window.

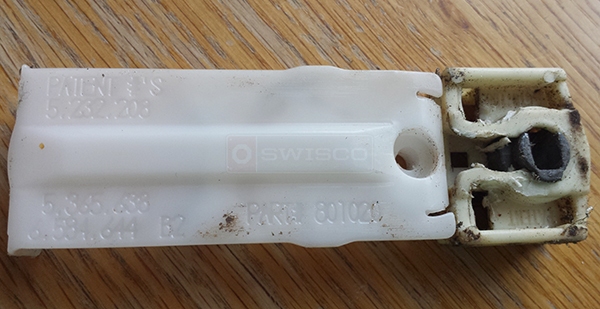

User submitted a photo of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
August 31, 2015
Thanks for posting. Please see our 15-111 shoe, 15-150D cover, and S160-6 coil spring and let me know if this hardware matches up. They look good to me but go over their details to confirm.
A home owner from Blaine, MN says:
August 31, 2015
Thanks. I ordered the parts today.
A home owner from Brantford says:
April 1, 2024
Just saw this post and I have the same issue. So I ordered the parts from the links on this thread and installed it to my sliding windows and all work great. Thanks so much
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
6.5 lbs Series 160 Coil Balance
6.5 lbs Series 160 Coil Balance
S160-06
$4.85
