Jordan channel balancer

A quick learner from California says:
Need to replace a Jordan window channel balancer stamped
28-3 E H What part should I order?

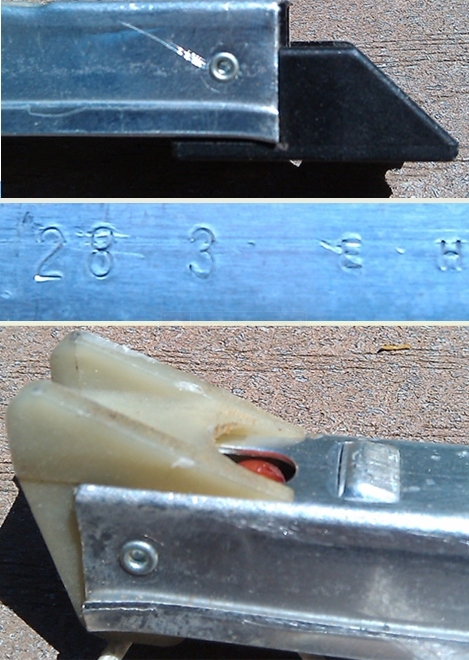

A user submited photo of window channel balance
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. Before I can confirm what Series channel balance you have, I'll have to figure out what bottom your bottom shoe is. Please look at the measurements for our 15-001 and 15-002 bottom shoes and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively. Which measurement more closely resembles your own shoe?

Can you also confirm the length of your metal channel?
A quick learner from California says:
Tom, Thanks. Looks like the 15-001 shoe matches mine (1 1/8 depth. So what channel balancer should I order?
Profile picture of Tom
Tom from SWISCO responded:
Thanks for getting back to us, Steve. Sounds like you have our Series 390 channel balance. Does that look about right? You can look through the length options available for this Series to determine the best replacement balance. Remember: the length of a channel balance is determined by the metal channel itself. Do not include the plastic attachments in your measurements.
