Key tumbler thumb turn

A quick learner says:
December 27, 2013
I thumb turn lock 40-089. I tried to install it in my door and the lock does not fit. The one sent is rounded on the top and bottom. The one needed is flat on the top and bottom. I did get the lock into the opening but it operates very stiffly and I am afraid I will break off the key. Is there a better fitting lock. The one I replaced is a PADO with double key or cylinder . The one I replaced was working, I just lost all my keys and am replacing all of my locks.

Any help will be appreciated. Thank you in advance.
Profile picture of Tom
Tom from SWISCO responded:
December 27, 2013
Thanks for posting. Could I see a few pictures of the original key cylinder? I'd also like to see the original handle set. That will help us find a good replacement. Thanks!
A quick learner says:
January 5, 2014
I am attaching 4 photos. Hope this helps.
Charlie

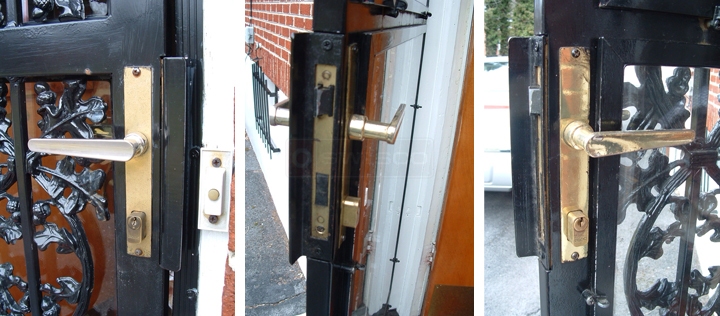

User submitted photos of security door hardware.
Profile picture of Tom
Tom from SWISCO responded:
January 8, 2014
Thank you for the additional images. Please look at our 40-049 and see if you think this would be a good match.
Complete Mortise Lockset, Brass
Complete Mortise Lockset, Brass
40-049
$72.02
Key Tumbler Thumbturn
Key Tumbler Thumbturn
40-089
$27.15
How to install the Swisco 40-049 Mortise lock set.
How to install the Swisco 40-049 Mortise lock set.
VIDEO
WATCH >
How to flip a storm door mortise latch.
How to flip a storm door mortise latch.
VIDEO
WATCH >
