Kilian Syracuse toronto

A quick learner from Sonoma CA says:
April 13, 2017

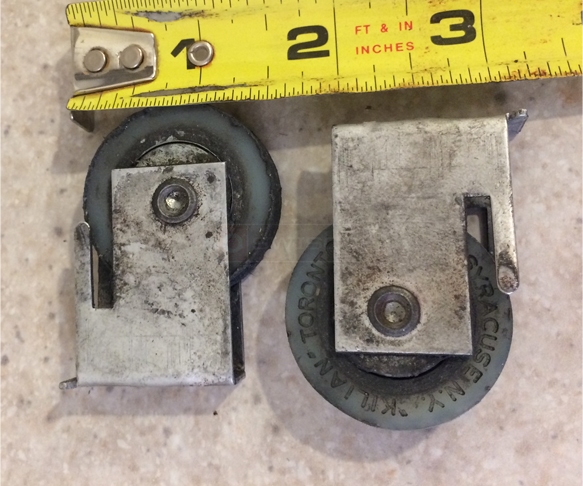

Roller for 1960s era sliding glass door. Concave rubber or plastic wheel. I need 4 of these!
User submitted image of their door hardware.
Profile picture of Tom
Tom from SWISCO responded:
April 17, 2017
Looks like you only show the inside portion of a complete roller unit. We're going to need to see the whole thing, including the outer housing. Check in your door to see if the outer housing is still there.
A quick learner from Sonoma CA says:
April 17, 2017
The wheels and housing are the same on both sides. There was no outer housing, just a receiving notch for that clip on the end.
A professional from CA says:
April 17, 2017
81-258 is the replacement for this roller. The corner bracket will need to be removed and replaced with the new one.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
April 20, 2017
Like our friend from California said, the 81-258 may be a replacement for this. However I would triple check to make sure there isn't an outer housing. I don't know how else this roller would install without it.
A professional from CA says:
April 20, 2017
The outer housing is what I called the corner bracket. This old style was replaced by 81-258. It is completely redesigned, but fits the same door. The new inner part will not fit in the old outer housing. If the door already had the new housing, you could easily replace only the inner part in the existing outer housing.
A quick learner from CA says:
November 13, 2020
Perfect -- Same roller here. I stopped supplying our customers with these small time consuming parts years ago and just refer them to your site. Thanks again Swisco.
