Kinco Mark V Tilt Window Latch

A handy person from Orange Park, FL says:
Do you have a latch similar to this one? It has a lock on it that none of the ones in your catalog appear to have.

Thanks,
Brian

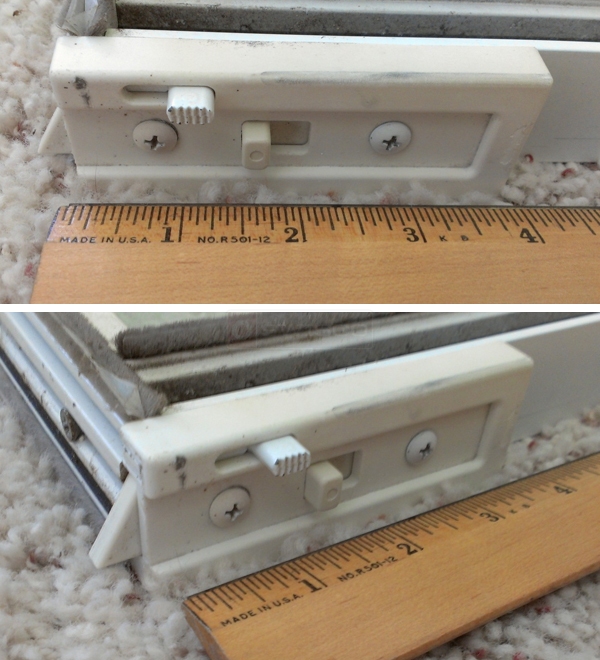

User submitted photos of a tilt latch.
Profile picture of Tom
Tom from SWISCO responded:
Thank you for posting, Brian! I'm not sure I recognize this. Could you give me more detailed dimensions? I'd like to know the width of the latch, as well as the distance between its screw hole centers. Thanks!
A handy person from Orange Park, FL says:

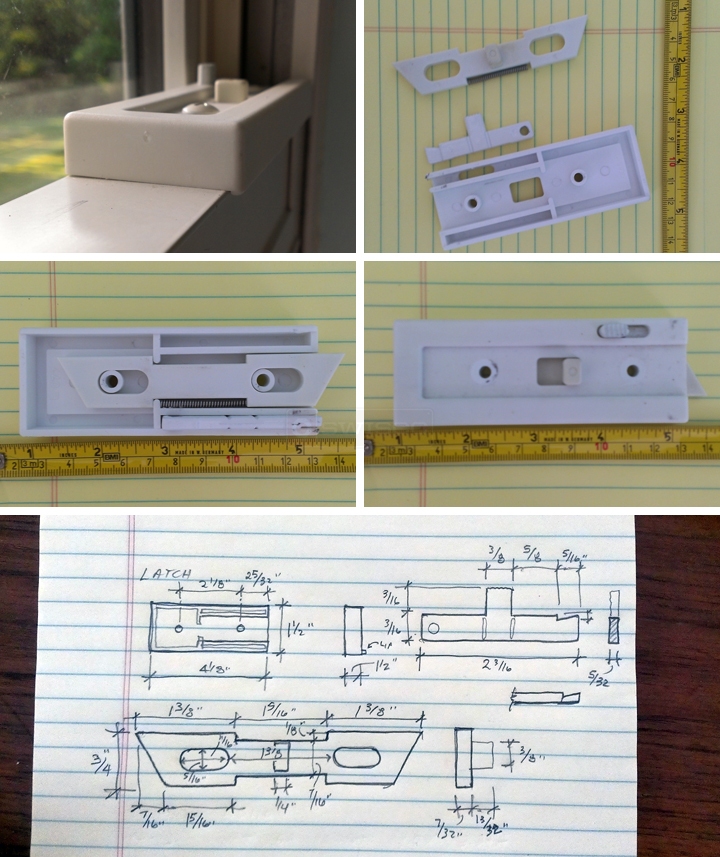

The width is 1-1/2" and the distance between the screw holes is 2-1/8". I'll include a few more images I took today. Note the tiny lip that hooks on top of the sash frame. Thanks.
User submitted photos of a tilt latch.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for the extra details, Brian.I think you might want to take a look at our 26-228 & 26-229. The hole spacing is the same, and the front hole offset is 3/4", which is very close to your 25/32". The width is also under 1-1/2", so it should fit on the sash. What do you think?
A handy person from Orange Park says:
Well, I think it will work for the sash part, but what about the window lock? Do you have one that matches the tilt latch with window locking bolt?
Profile picture of Tom
Tom from SWISCO responded:
Unfortunately, we don't have any tilt latches with that locking bolt.
