Kinco Window Channel Balance

A handy person from Orlando says:

December 31, 2012

Need 4 Kinco replacement channel balances. My guess is:

S380-35
35" Series 380 Channel Balance
option: 3440

27.8 lb double pane

Stamped 34 4 BSI 1K

Pics attached.

Please confirm for order.

Thanks,
Joe

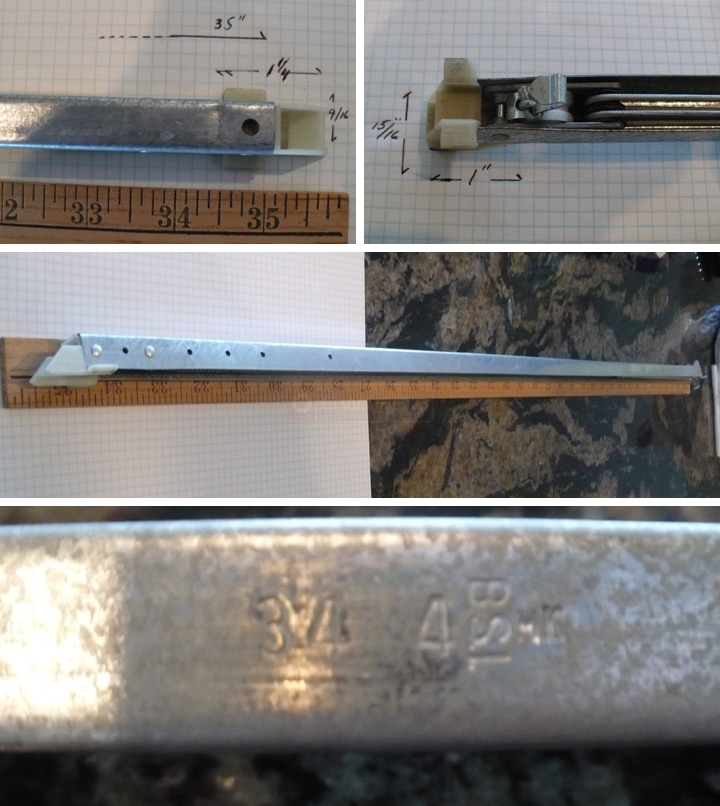

User submitted photos of a window balance.

Tom from SWISCO responded:

January 2, 2013

Thanks for posting! I won't be able to confirm whether or not our Series 380 will work for you without first knowing what your bottom attachment is. Please take a look at our 15-004 and 15-005 channel balance shoes, and note their depths. As you can see, they are 1-3/32" deep and 1" deep, respectively. Which one more closely matches your own bottom attachment?

A quick learner from Orlando says:

January 2, 2013

Sorry, 1" depth 1505...
The height being 1 1/64"
PLease advise.
Joe

Tom from SWISCO responded:

January 3, 2013

Great. With a 15-001 shoe, I agree that our S380-35 channel balance with a 3440 option appears to be the closest match.

A quick learner from Orlando says:

January 3, 2013

Thanks, ordering..............
Joe

A quick learner from Orlando says:

January 12, 2013

Thanks Tom, another successful install of the 3440 balances...they work great.
Today, I will also tackle the Kinco slider rollers previously ordered.
Joe

Tom from SWISCO responded:

January 14, 2013

Great news, Joe! I'm glad everything worked. Let me know if you have any other questions or concerns, I'd be more than happy to help.
