Lawson single hinge 7700 impact window 30' channel with stamp of.... 29DS48L

A home owner from Fort Myers Florida says:
I am replacing the whole unit including plastic ends, Can you recommend a replacement unit?
Profile picture of Tom
Tom from SWISCO responded:
I'm afraid I cannot recommend what you need based on this information alone. I will need to see pictures of the balance in question. Specifically, I need to see the top and bottom nylon guides, if your balance has them, or the metal clip at the end of the cord if they don't. Please also tell me the weight of your sash.
A home owner from fort myers says:
- Pics of each end attached
- sash weighs 42.5 pounds
- would like ends attached before shipping if possible.
- I also would need the 2 plastic pieces that are screwed into the sash, on top

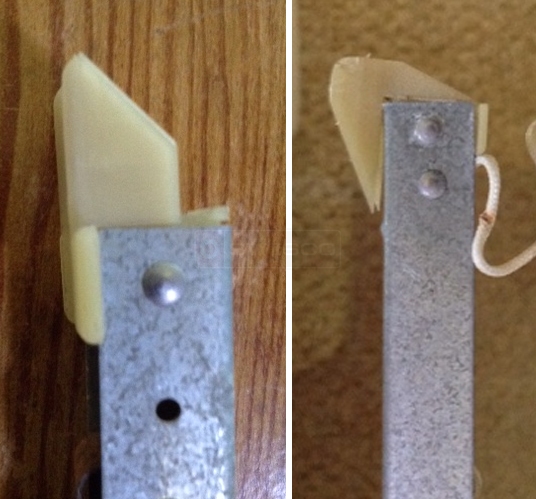

User submitted photo of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
Thank you! I believe this would be our S385-30 channel balance with a 2975 option. Two balances with this option can carry a sash weight of 42 through 45 pounds. See what you think!
