Left sided top tilt latch

A home owner from Florida says:
We would like to replace this top tilt window latch (left side). There are no numbers or brand on the part or window. The part that sticks up and is used to move the "tooth" to the side broke off. It looks like Product Code 26-337 might be what we need, but the end dimension of what we have is about 7/8", and yours shows 1-1/8". Hopefully, the attached photos will help to determine what would be best for this window. Thanks for your help!

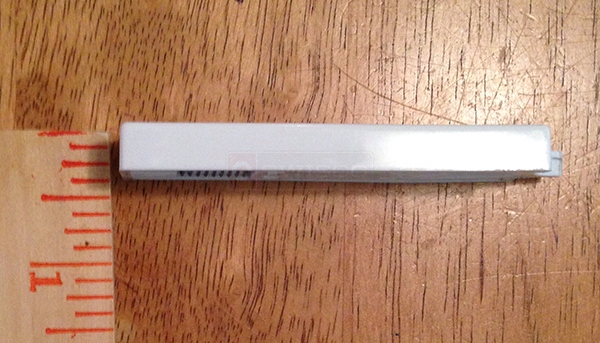

User submitted a photo of a tilt latch.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. I'm afraid we only received one photo, which shows the depth. This is not that important compared to the other dimensions. Could you show us some other angles? Can you also confirm the distance between the installation holes, center-to-center? Thanks!
A home owner from Florida says:
Here are the additional photos that didn't come through to you. I only have a yardstick for measuring here, and it looks like the distance is 2" between the installation holes. Thanks for your help!

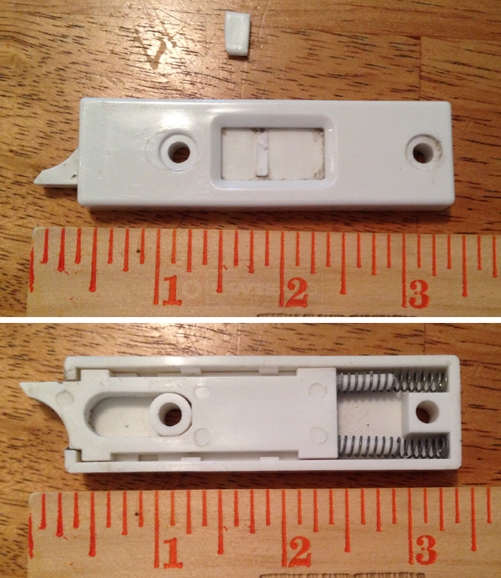

User submitted photo of their window latch.
Profile picture of Tom
Tom from SWISCO responded:
Thanks! We have found a possible match and are working on bringing it in. I will let you know as soon as it becomes available.
Profile picture of Donna
Donna from SWISCO responded:
Please see new SWISCO product code 26-435, top tilt latch with hole centers that measure 2" on centers and a 7/8" wide housing.
A home owner from Florida says:
Thank you!
