Leigh vu 8' louvre bi-fold metal doors

A home owner from Augusta, Ga says:
July 26, 2016
We need to purchase complete mounting hardware minus top and bottom track for 10 doors. Doors were manufactured around 1970. Thank you

Jim

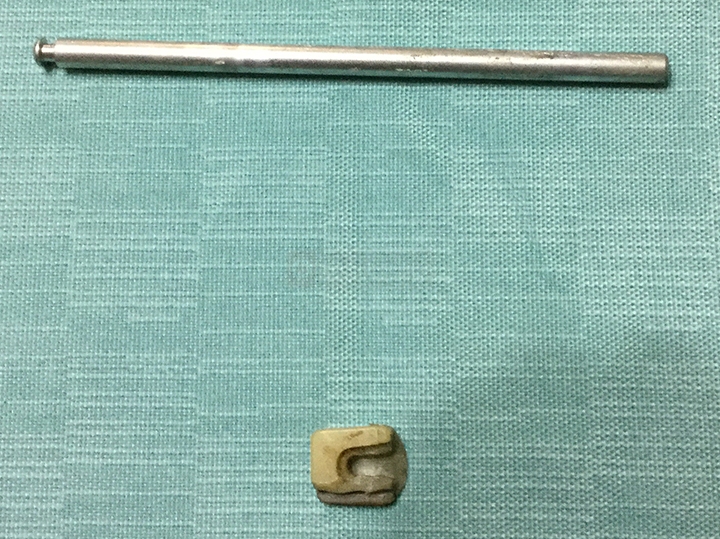

User submitted photos of bi-fold door hardware.
Profile picture of Paul
Paul from SWISCO responded:
August 1, 2016
Hey, Jim. The pin and nylon guide you show resemble our 21-056 bottom guide rod kit. This was used back in 1967. The threaded bottom door pivot looks like our 21-062 while the top guide rod kit would likely be our 21-055. We don't have a complete top pivot rod kit, so you will need to put these parts together with the 21-026B, 21-250 and 21-155. You might also need the 21-150 1/4" nylinders so the pins pass through the door without rubbing. Please review this hardware and let me know if you agree.
Bifold Door Guide Pin
Bifold Door Guide Pin
21-056
$7.75
Bifold Door Guide Pin
Bifold Door Guide Pin
21-055
$8.09
Bifold Door Pivot, Leigh
Bifold Door Pivot, Leigh
21-062
$5.97
Plain Pin, 1/4" x 5-3/4"
Plain Pin, 1/4" x 5-3/4"
21-026B
$1.54
Spring
Spring
21-250
$0.67
1/4" Nylinder
1/4" Nylinder
21-150
$0.39
1/4" Push Nut
1/4" Push Nut
21-155
$0.28
