Little piece that connects to slides at bottom of window.

A professional from Greensboro nc says:
September 20, 2016
It's the foot shaped piece that is in one pic and missing front the other one. They are broken on several windows where I work . Please help me find this part.
Thanks, Toby

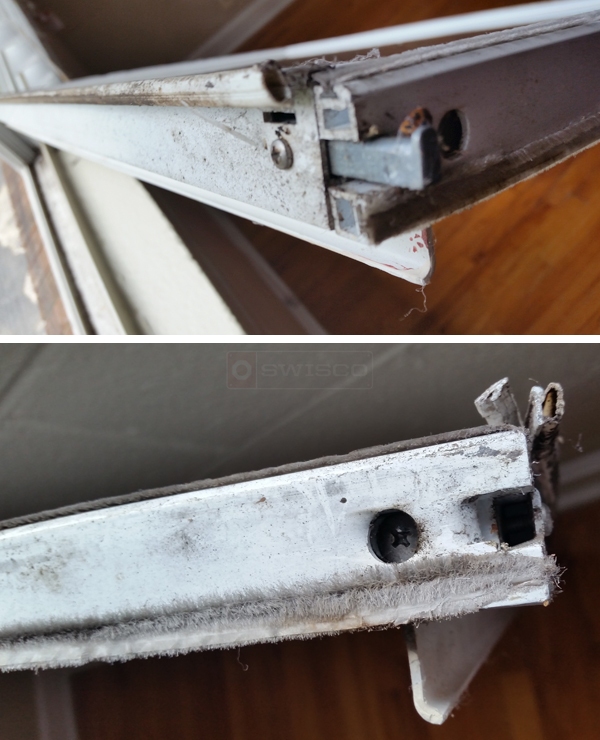

User submitted photos of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
September 22, 2016
Hey, Toby. This part is known as a pivot bar. We carry a wide variety, so I'm confident we can find a match for you. One part to start with is our 26-021. I recommend carefully going over our dimensions to confirm that this is a match. The most important measurement is the distance between the installation hole and the outermost tip of the bar; it's very important that you make sure this measurement matches yours. For the 26-021, this measurement is 1-3/8".
A quick learner from Greensboro nc says:
October 12, 2016
Hey thanks , I appreciate it I'll be ordering some from you very soon.
A quick learner from Greensboro nc says:
October 27, 2016
Here is what I have, 2 1/2" long and 3/8 of it stick out of window.

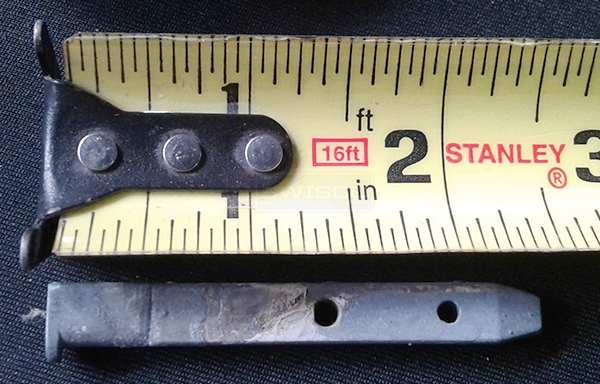

User submitted a photo of a pivot bar.
Profile picture of Tom
Tom from SWISCO responded:
October 31, 2016
Thanks! I still think the 26-021 is our best looking match. Carefully go over the dimensions we show to confirm. Hole placement is important.
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
