Locating replacement part - Truth

A home owner from Memphis, TN says:
I am having difficulty locating a replacement part for my casement window hinge. (Part of the stem on the crank broke off.) Photos of the broken unit is attached.

crank base, underside: US PAT. 4,241,541
crank base, top side: 12 03
9.5" arm, top side: EntryGard Truth
9.5" arm, underside: 40754
2-part arm, first part (attached to a gear), top side: R
2-part arm, ffirst part (attached to a gear), underside: 31538A
2-part arm, second part, measures approx. 3 13/16" (no imprint)

Your help is much appreciated!

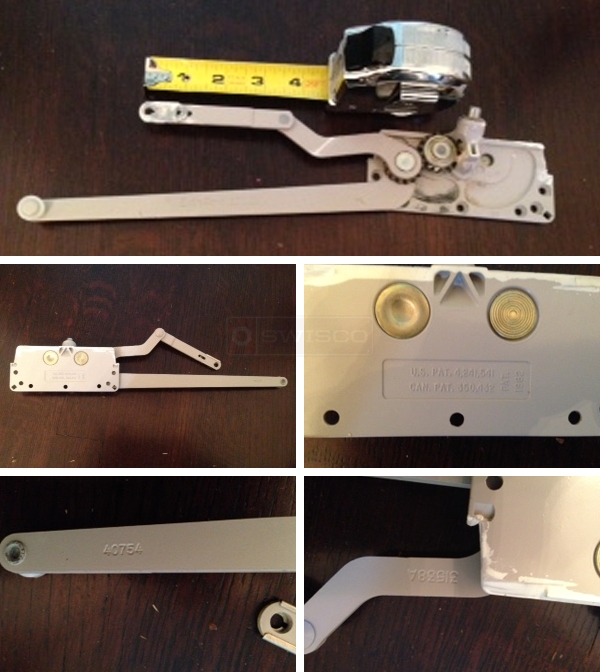

User submitted photos of a window operator.
Profile picture of Paul
Paul from SWISCO responded:
Hello, Pamela, thanks for the pictures. Have you seen our 39-155? This looks very close to what you have. Just make sure the dimensions are the same.
