Looking for weephole covers

A quick learner from Florida says:
I'm looking for plastic weep hole cover, for a siminton window. these are aluminum framed windows. the windows are white.

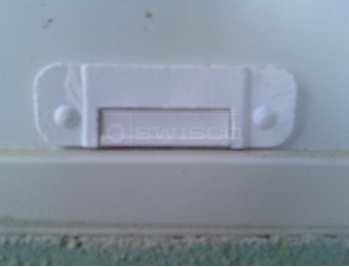

User picture of weep hole cover.
Profile picture of Paul
Paul from SWISCO responded:

Thanks for posting. Can you please give us the dimensions of your weep hole cover? This will help us narrow down the list of possible replacements.

In the meantime, please take a look at our selection of weep hole covers to see if anything matches. Make sure to look at our 28-186. Would any of these work?

A quick learner from Florida says:
Weep hole cover dimension is 2.5 in x3/4 in color white
Profile picture of Paul
Paul from SWISCO responded:
Thank you, that helps narrow things down. However, we just need one more measurement. Can you please remove the weep hole from the window and measure the distance between the two installation "plugs?" Do they match the 26-186? Please let me know.
A handy person from FL says:
Did you order this weep hole cover and was it the right one? I have the same one and same size as your picture above and want to make sure it's right before ordering.
A handy person from Wellington, FL says:
I have horizontal sliders of ca. 2002 vintage with missing/decayed weep hole covers. Attached are photos of one of the few remaining parts, and the underlying hole pattern.

The pin holes are 1.900 +- .010 apart, with 0.178 (3/16ths) diameter. The rectangular hole is about 1.25 x 0.25, with its top about inline with the center of mounting holes.

The plastic piece is 2.5" long X 0.8125 (13/16ths).

Got a part to suffice?
User submitted photos of a weep hole cover.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! I have placed you into an existing discussion regarding this weep hole cover. As you can see above, we could not find an exact match. The closest we have is our 26-186. Do you think you can use that as a substitute?
