MWD window Pivot Lock Shoe

A quick learner from USA says:
April 26, 2016
Window manufacturer is MWD

Series 165/175

Pivot lock Shoe

Please see attached photo for part identification. Thanks in advance!

My dimensions:

Height is: 1 61/64

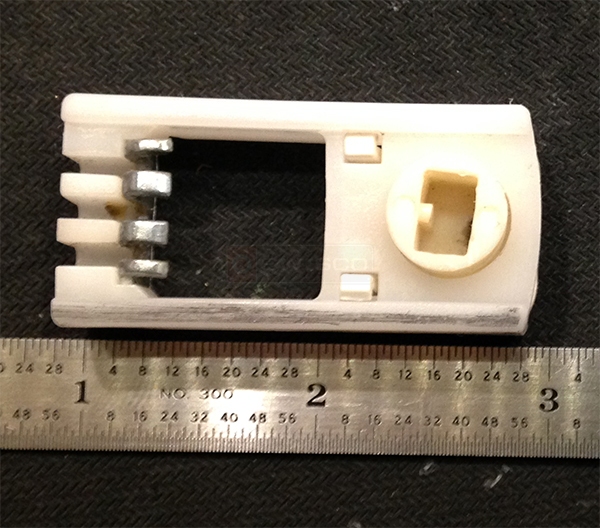

User submitted a photo of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
April 28, 2016
Before I recommend a replacement pivot shoe for you, can you tell me the width and thickness? They are the two most important measurements.
A quick learner from USA says:
May 2, 2016
My dimensions:

Height is: 1 61/64
Profile picture of Tom
Tom from SWISCO responded:
May 3, 2016
Thanks for getting back to us. Height actually isn't as important. Width and thickness are more vital. We will need to know those before we can confirm.
A quick learner from milton, fl says:
May 4, 2016
Ok I keep trying to post those dimensions but they don't show up on the post?! Anyways the thickness is three eights (3/8) of an inch. The width is fifteen sixteenths (15/16) of an inch. I hope this post makes it!
Profile picture of Paul
Paul from SWISCO responded:
May 5, 2016
Perfect, thanks! Please see our 15-212 pivot shoe. This matches your measurements. Let me know what you think!
Pivot Shoe, 3/8" Thick
Pivot Shoe, 3/8" Thick
15-212
$2.93
