Measuring the size of a casement window operator

A home owner from California says:
How do I measure the size of my casement window operator? I need replace two of them. The model number is 30842R for a Truth Hardware Entryguard operator. Thanks

Steve
User submitted photos of a window operator.
EntryGard TRUTH 20810
Profile picture of Tom
Tom from SWISCO responded:
Hey, Steve. You'll need to remove your operator from the window to properly measure it. Once you have, see how well your measurements match up to our 39-031 and 39-032. The video below may also help you.
A home owner from California says:
Thanks for your help. You have a great website and have figured out how to utilize technology for online sales. Congrats.

Steve
Profile picture of Tom
Tom from SWISCO responded:
Great! Thank you for the praise. I'm happy we were able to help. If you need anything else, let me know.
A quick learner from Los Alamitos, CA says:
Tom,

Lot's of projects going on so I finally am back to the window. I checked the measurements on the 39-032 compared to my Truth 30842R. The left arm measurement of 4 and 7/16 is good. However, the right arm for my 30842 R measures 9 and 3/4 versus 10 and 3/4 on the 39-032. Is this a problem?

I measured the channel on the window the the arm moves in and there is still about 1 and 3/8 clearance from the end of the channel to the 9 and 3/4 arm. (see attached picture) I think this means I can use the 39-032 operator. Correct?

Please let me know. Thanks for your help.
Steve

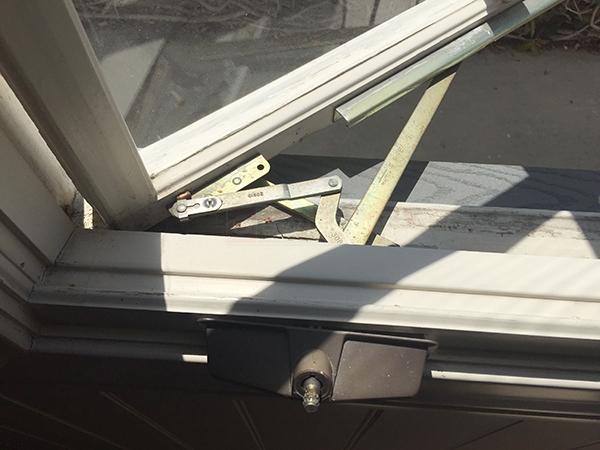

User submitted a photo of window hardware.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Hey, Steve. I think I can help here. I don't think that inch difference will really be all that much. I agree with Tom, the 39-031 and 39-032 appear to be our best matches. Let us know if you need anything else.

A quick learner from Grafton, VT says:
Hi, Your video doesn't explain how to measure the casement assembly for a good replacement match. Do you just measure the arm that attaches to the track on the window? I can't find a single indication as to what company made these windows...so I need to remove and try to match.
Thank you very much!
Profile picture of Tom
Tom from SWISCO responded:

Yes, you will need to measure the operator itself. We have detailed dimensions for all our casement operator hardware that you can use as a reference. If your operator is similar to the one pictured in the first image, start by comparing it to our 39-032. See the dimensions below. If this doesn't match, show me a picture of your operator out of the window and we can do our best to find something close.

Dimensions for 39-032
Dimensions for 39-032

A quick learner from Dunwoody, GA says:
Hi I am trying to locate replacement window cranks. I believe I can replace them myself since the crank is the only issue.

Thanks

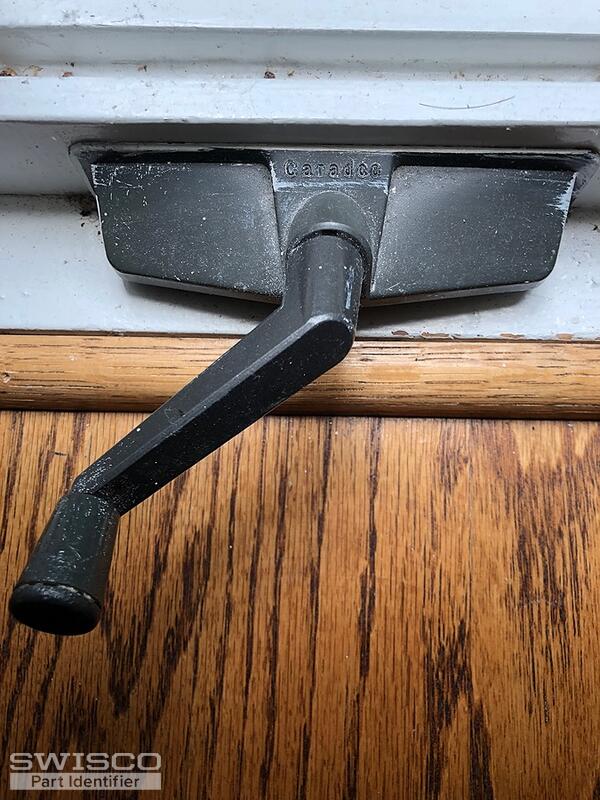

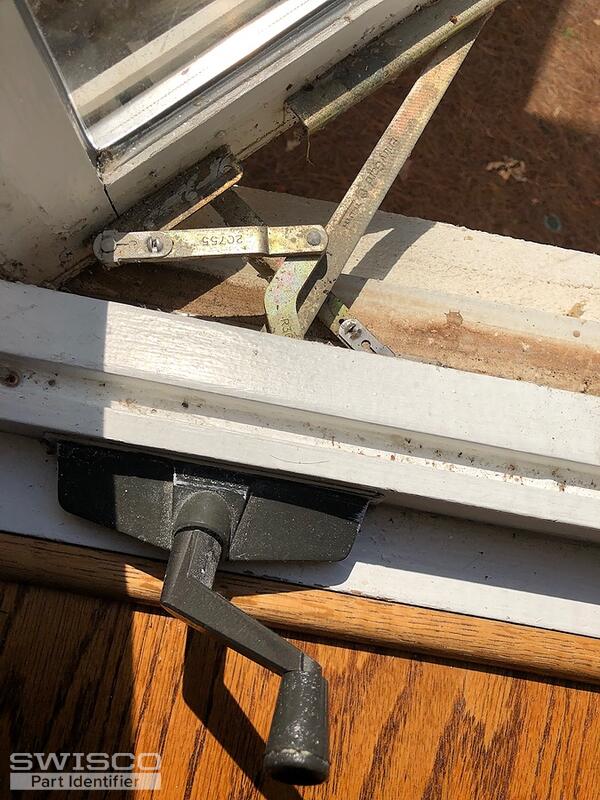

Thumbnail of the uploaded file named 9387F7C5-5D7D-460E-8355-9C781520EB88.jpeg
Thumbnail of the uploaded file named EC445DAF-5B1B-4E29-9CF2-5AB662355191.jpeg
Thumbnail of the uploaded file named 6DA17B5A-C1D9-4120-98BB-BE25A589916C.jpeg
Thumbnail of the uploaded file named A7B265AF-A448-4E10-8054-579DCD5BF78C.jpeg
Thumbnail of the uploaded file named 11336DBD-413D-4B6F-913C-B9AFEDA2E169.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have the same 39-031 and 39-032 EntryGard operators discussed in this thread, which both use the 39-205 folding handle. Thanks for posting!

Watch How To Repair A Casement Window Crank Operator
