Metal Bi-Fold Door Hinge

A handy person from Philadelphia Suburb says:
I noticed that you carry certain parts associated with these doors (picture attached). I have 11 of them in my apartment and on a few of them the hinges (picture attached) have broken. Do you carry these hinges or know of any replacement hinges.

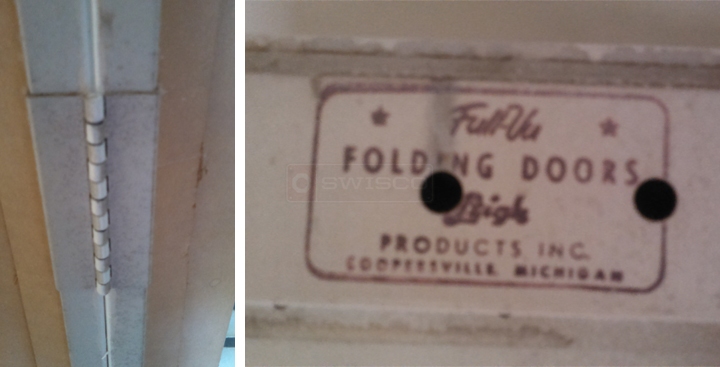

User submitted photos of bi-fold door hardware.
Profile picture of Paul
Paul from SWISCO responded:
I'm not sure if we'll have what you need. The hinges on metal bi-fold doors are track welded and the companies that make them don't sell the hinge by itself. Our 23-405 may be worth considering, but this is for wood bi-fold doors and I cannot guarantee that it will work.
A quick learner from Philadelphia Suburb says:

I think these will work as a replacement. I'll just drill the door and put a nut to hold the screw in.

Can you tell me the thickness of the "flange", I am hoping it is about 1/16" of an inch.


Profile picture of Paul
Paul from SWISCO responded:
Yes, the flange is 1/16" thick.
