Metal Frame bottom tilt out

A quick learner says:
Hello folks,
The attached pivot shoe pic is from as best as i can read from the frame of the window is...

A.W.I. Mississauga IGMA 1997

Also can you help me with the removal of shoe the videos i see on your site are for vinyl not metal like mine.

Many thanks i will be ordering as soon as I can get a positive I.D. on this pivot shoe. Many Many thanks, Bill

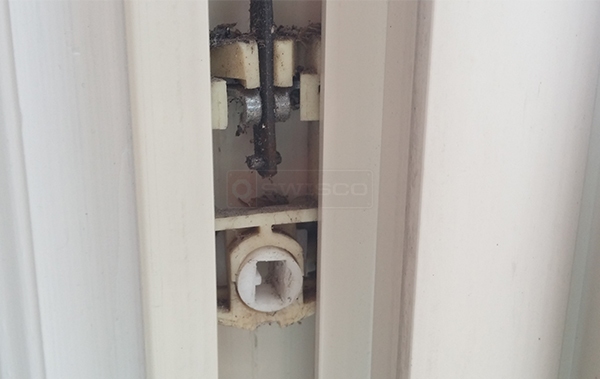

User submitted a photo of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting, Bill. Is there any way you can give us your measurements? Specifically, we need to know your thickness and width. As for removing the shoe, the two videos we have are the best methods we have. Is there a cutout at the top of the jamb? It may be hidden under a sash stop.
A quick learner from wyandotte Mi says:
Best I can tell It looks like the PS width is 1 1/4"
the thickness is 5/8".

Profile picture of Paul
Paul from SWISCO responded:
With those measurements, see our 15-047. This looks like it could be a good match.
