Milgard Vinyl Single Hung No Tilt Window Balance Spring

A quick learner from Las Vegas says:
The metal portion of the balance is 27" long and 1/2" wide.

The top is 15/16" wide (back spring side), 9/16" wide (front solid/printed side) and 3/4" deep.

The bottom shoe is 15/16" wide (back spring side), 9/16" wide (front solid/printed side) and 1 & 1/16" deep.

The window is hard to open/close.

Thanks for your help.

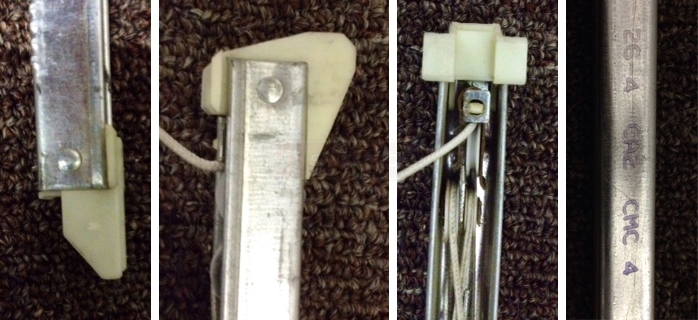

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Based on your dimensions, I think you should check out our S385-27. Check it out and see if you agree.
