Mirror door wheel

A home owner from New York says:
Looking for a replacement for my mirror door wheel. It is a 1 and 1/2 inch plastic diameter wheel that is in a metal housing 2 and 1/2 inches long and 9/16 inches thick. The wheel has the number 608Z, and the metal is stamped DNW. It is secured with one screw.

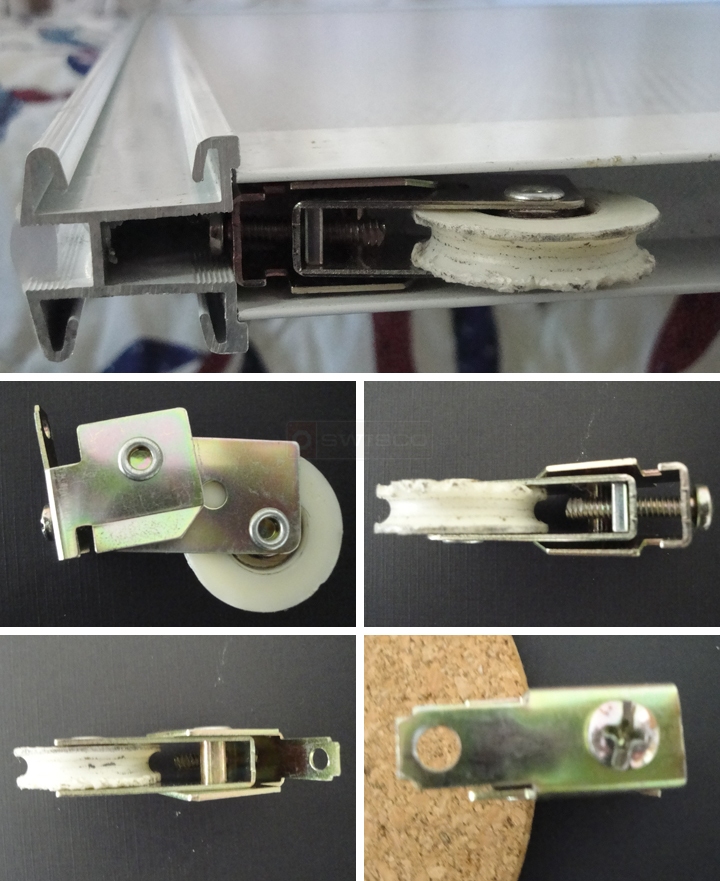

User submitted photos of a mirror closet door roller.
Profile picture of Dave
Dave from SWISCO responded:
Thank you for contacting us. I recommend looking at our 23-198 roller as a possible match. Just make sure the dimensions match up. The only thing that concerns me is the top mounting tab with hole. Yours is straight while the 23-198 is bent. I think the bend would move the housing deeper in the frame, but it shouldn't interfere with the operation of the roller. It might actually be easier to install. What do you think.
A professional from California says:
Your door has a screw port that is on top of the rail. Most are on the bottom. 23-198 might work if it will flatten out straight without breaking. Even at that, I don't think it would be long enough. I would look at 81-236 as a repair for the existing housing. The rest of the roller is like new.
