Missisng Channel Balance

A home owner from Berkeley Califonria says:
I do not have the original channel balance. Need help identifying the correct balance. I need left and right. I beleive the window is a Milgard because of the MM on the lock
Thanks

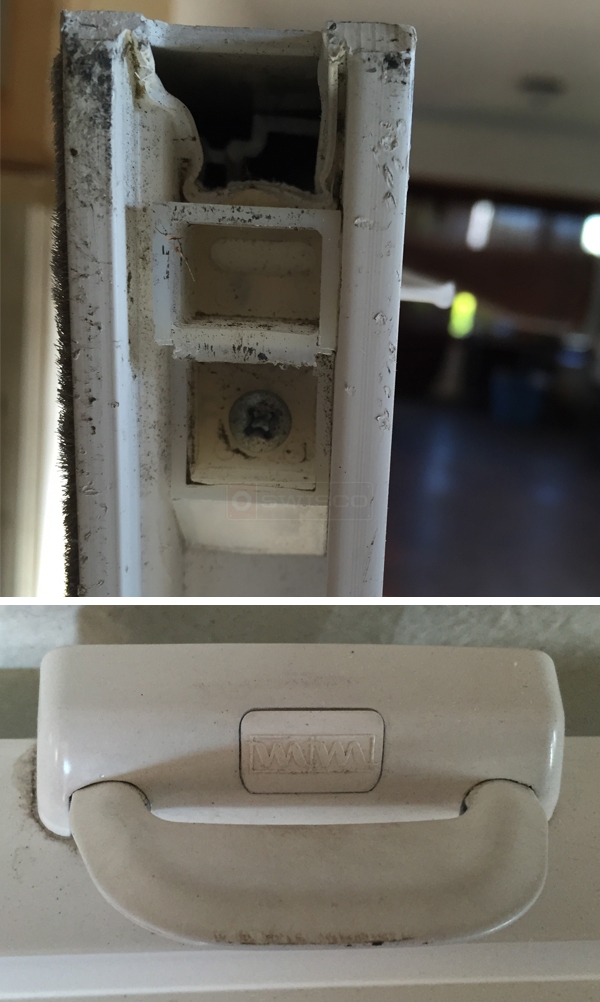

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
With no original hardware to use as reference, we will have to do some detective work. Milgard windows have been known to use our Series 385 channel balances. They've used others, as well, so there's no guarantee these are what you had, but there is a good chance. Would you happen to have an identical window in the house you can use as reference? If not, please give us the visible glass size and the overall size of the sash (width X height). Please also weigh your sash. We can use that information to calculate the proper size and strength balance.
A home owner from Berkeley Califonria says:
Ref: D73122

The sash is 41.75w X 24.5H and 20lbs

The visible glass size 38W X 21H

I don't have a similar window as a reference
Thx
Profile picture of Paul
Paul from SWISCO responded:
Thank you! I would recommend a 22" long balance then, along with a 2140 option for sashes weighing 15 through 23 pounds.
