My Window Channel Balance

A handy person from New Mexico says:
I'm uploading the pictures of my window channel balance for you to help me to make the right order to replace it.

The channel lenght is 27"
The channel width is 1/2"
The channel depth is 5/8"
Please tell me which one I should order.

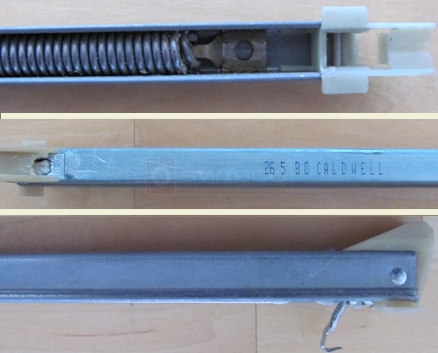

A user submited photo of window balance
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting. Before I can offer an applicable replacement for this channel balance, I just need to know a bit more information about the bottom attachment. Please take a look at our 15-004 and 15-005 channel balance shoes, and note their depths. As you can see, they are 1-3/32" deep and 1" deep, respectively. Which one more closely matches your own bottom attachment?

Once we know that, we can determine what Series channel balance you have, and we can work from there!
A handy person says:

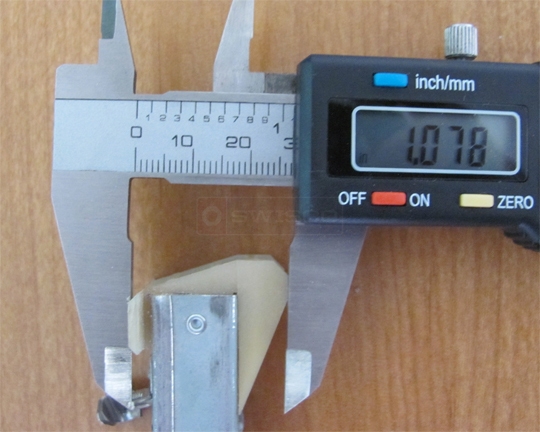

My measurement is 1.078" (See the pic)
A customer submitted photo of channel balance attachments.
Profile picture of Paul
Paul from SWISCO responded:
Thank you. That appears to be a 15-004 shoe, then. With a 15-004 shoe and a 19-005 top attachment, I believe that you have our Series 385 channel balance. Please take a look at our S385-27 with a 2650 stamp option.
