My doors have Delta 2188 rollers

A home owner from USA says:
Finally had weather good enough to inspect doors and determine roller number. My doors have Delta 2188 rollers. So, I need 4 of these to replace rollers on two doors. If there is a replacement that is sturdier, or that you would recommend, then I would like 4 of those instead.

Finished painting and re-screening the screen doors with the replacement rollers/corner brackets you sent. Everything went well.
Profile picture of Paul
Paul from SWISCO responded:
I'm not sure what you have. Could you take a few pictures of the rollers removed from the door? That will give us a good idea of what you have and what can be used to replace them. Thanks!
A home owner from USA says:

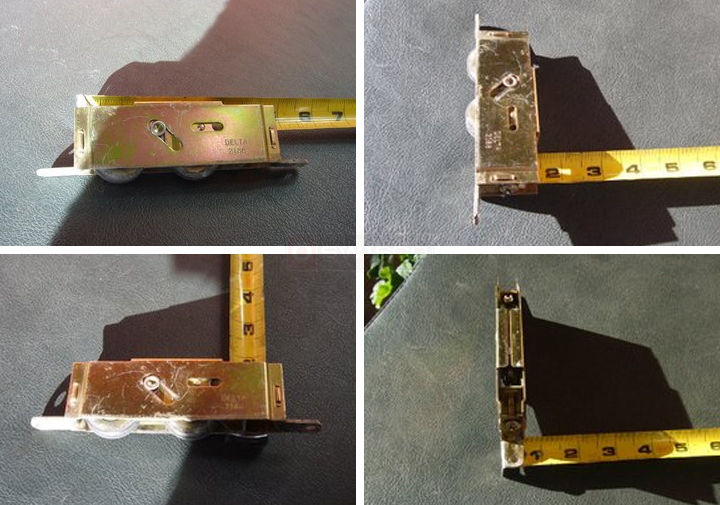

Here are four photos of the roller unit from my 8' high, vinyl, 9 year old, sliding doors. As mentioned in a previous email, it has "Delta 2188" stamped on it. (Not much help...) As mentioned in another email the only items I see similar in your online stock is 81-018 (and the Stainless Steel version 81-149) and 81-156. All have similar overall length and thickness. (Thickness of my unit looks close to 1/2". Your units are 11/16". Guess I will have to widen the slot in the doors....) 81-018 looks good to me; how about you? Need four of whatever you decide.
User submitted photos of patio door rollers
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
Thank you for the images! This looks closer to our 81-156. I would just double check your dimensions to confirm the size.
A quick learner from Lucerne Valley, CA. 92356 says:
What ended up working? Looks like I have the same rollers that need replacement. I need 2 for 1 door.

Thanks

Vicki
Thumbnail of the uploaded file named IMG_3130.jpeg
Thumbnail of the uploaded file named IMG_3126.jpeg
Thumbnail of the uploaded file named IMG_3128.jpeg
Profile picture of Tom
Tom from SWISCO responded:

This roller looks just like the 81-156 we suggested back in 2014. Is there any reason you don't think that will work for you? We have detailed dimensions and photos we show on its store page that you can use as a reference.
